5.
Check that the value of all the parameters are changed when performing the actuation test.
Specification : Face - About below 10%, Foot : About 50%, Defrost : About 90%.
Connect GDS with diagnostic connector.
Warm up the engine to normal engine temperature afte engine starts.

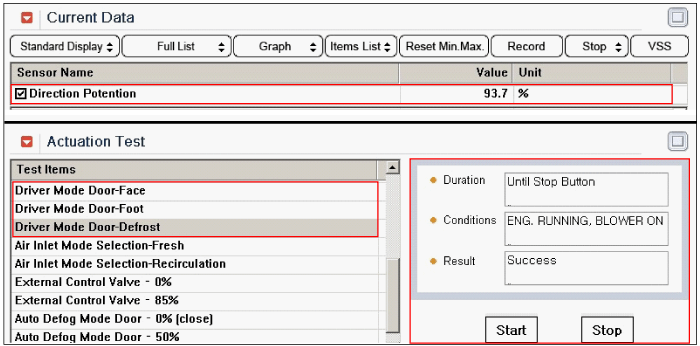

Select and monitor "Direction Potention" parameter on GDS.
Select and perform Actuation test Driver Mode Door - Face / Foot / Defrost in order.
Check that the value of all the parameters are changed when performing the actuation test.
Specification : Face - About below 10%, Foot : About 50%, Defrost : About 90%.
Are all the parameters changed when performing the actuation test ?
 | ▶ This is a intermittent problem caused by poor contact of component or Control Unit. ▶ Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to " Inspection/Repair " procedure. |
