Items | Specification | |
Ignition coil | Primary resistance | 0.7 ± 15 % (Ω) |
Secondary resistance | 5.9 (kΩ) | |
Spark plugs | Type | LZKR6B-10E, RER8MC, ELR9QC10 |
Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433in.) | |
Items | Specification | ||
Starter | Rated voltage | 12.V, 0.8 kW | |
No. of pinion teeth | 8 | ||
No-load characteristics | Voltage | 11.5V | |
Ampere | 65 MAX | ||
Speed | 2,715 rpm, MIN | ||
Items | Specification | |||
Alternator | without AMS system | Rated voltage | 13.5V, 90A | |
Speed in use | 1,000 ~ 18,000rpm | |||
Voltage regulator | IC Regulator built-in type | |||
Regulator setting voltage | 14.55 ± 0.2V | |||
Temperature compensation | -7 ± 3mV / °C | |||
with AMS system | Rated voltage | 13.5V, 90A | ||
Speed in use | 1,000 ~ 18,000rpm | |||
Voltage regulator | IC Regulator built-in type | |||
Regulator setting voltage | External mode | ECU control | ||
Internal mode | 14.55 ± 0.3V | |||
Temperature compensation | External mode | ECU control | ||
Internal mode | -3.5 ± 2mV / °C | |||

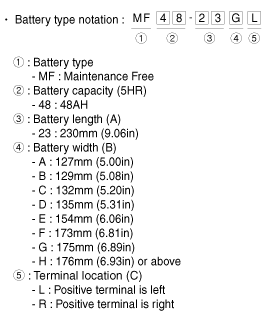

Battery | Type | 36 - 24 DL | ||
Cold cranking amperage [at -18°C (-0.4°F)] | 380A | |||
Reserve capacity | 80min | |||
Specific gravity [at 25°C(77°F)] | 1.280 ± 0.01 | |||
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
