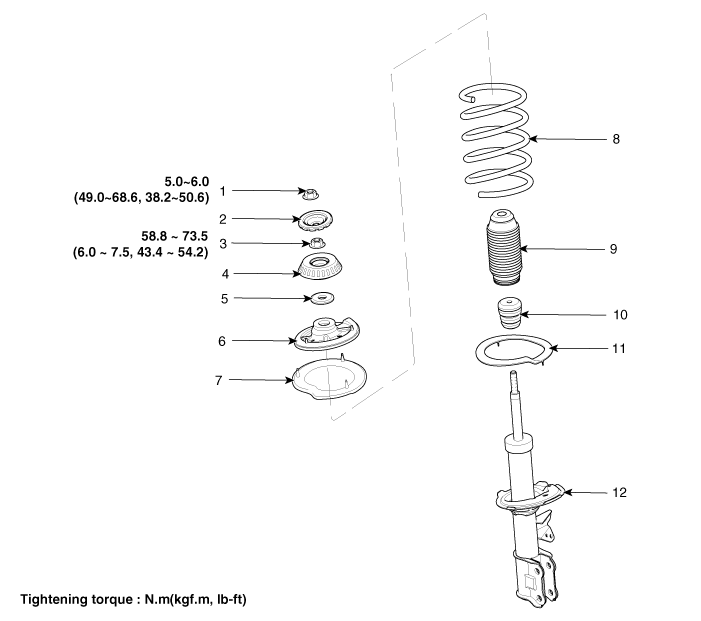

Components
caution
●

Tighten with specifed torque at curb position of vehicle

●

Fix the strut rod end and tighten the nut

1. Lock nut

2. Insulator dust cap

3. Self lock nut

4. Strut insulator

5. Strut bearing

6. Spring upper seat

7. Spring upper pad

8. Coli spring

9. Dust cover

10. Bumper rubber

11. Spring lower pad

12. Shock absorber
