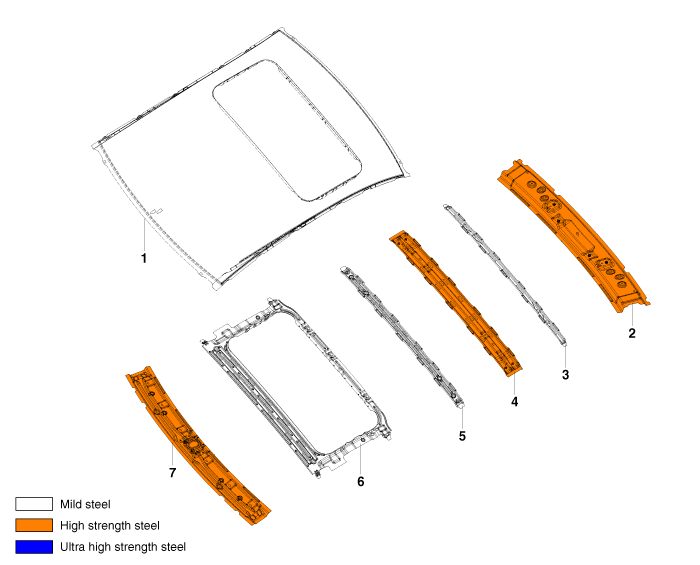

1

Roof panel

5

Roof center No.2 rail

2

Roof front rail

6

Sun roof reinforcement ring

3

Roof center front rail (Non Sun roof)

7

Roof rear rail

4

Roof center No.1 rail (Non Sun roof)

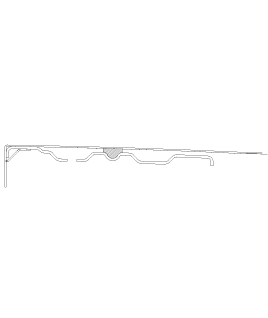

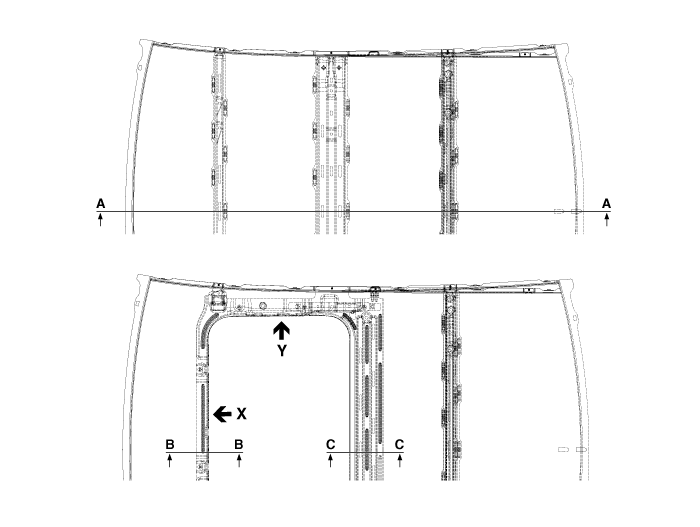

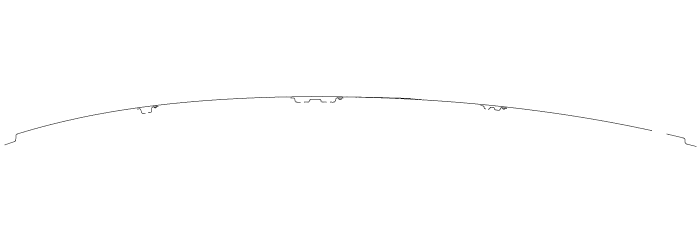

A - A

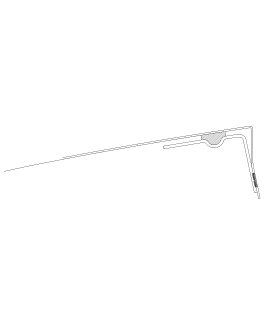

B - B

C - C

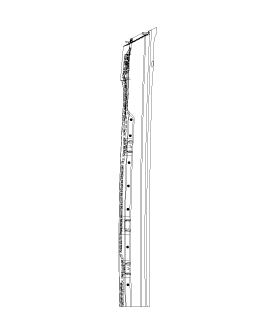

X

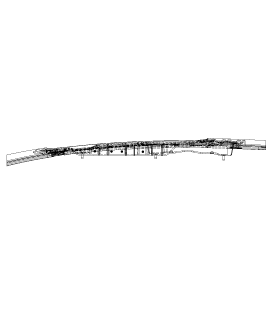

Y
