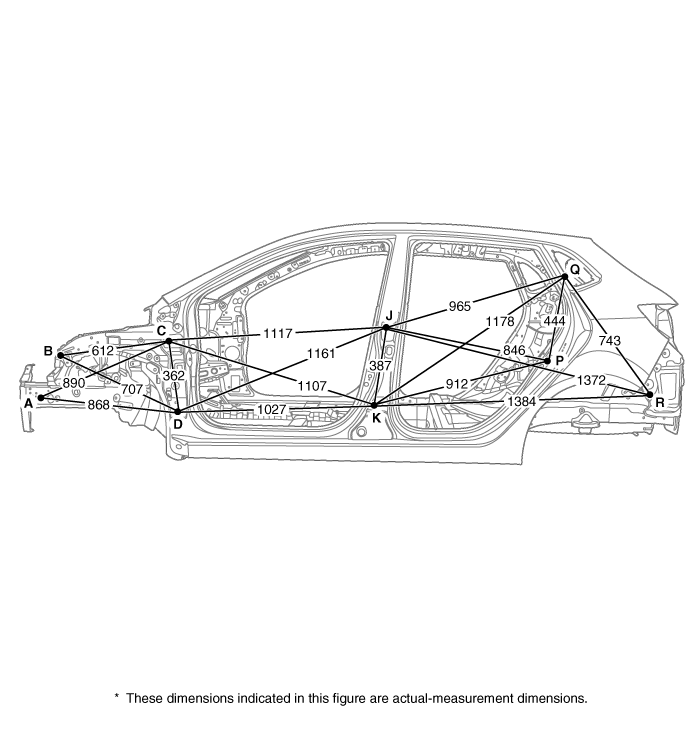

Front side member tooling hole (Ø12)
Fender apron upper member tooling hole (Ø7)

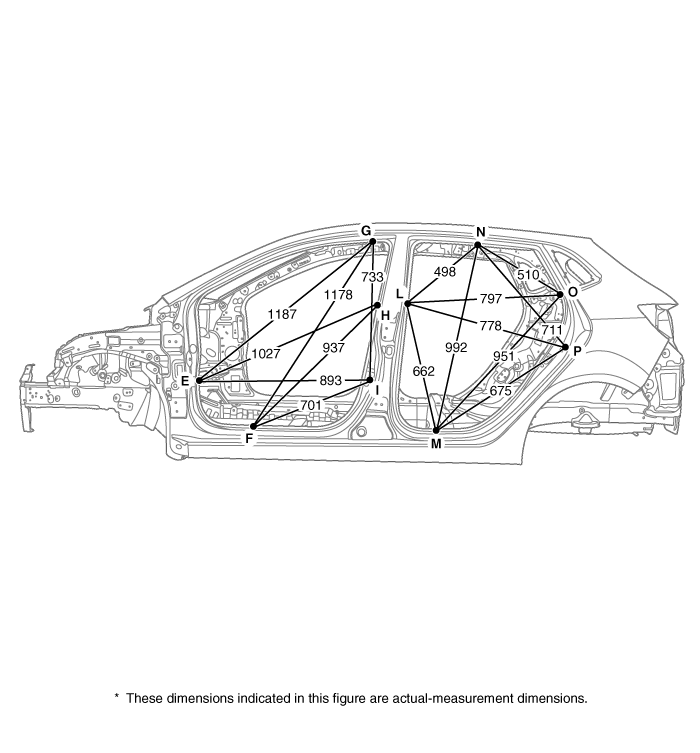

Front door upper hinge mounting hole
(Ø13)
Front door lower hinge mounting hole
(Ø13)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)
Rear door switch mounting hole (Ø9)
Quarter fixed garnish tooling hole
(6X10)
Rear bumper mounting hole (Ø12)
