A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the cluster fascia panel (A).
Disconnect the trip switch connector (A).
After loosening the mounting screws, then remove the cluster assembly (A).
Disconnect the connectors (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the cluster fascia panel (A).
Disconnect the trip switch connector (A).
Using a screwdriver or remover, remove the center fascia panel (A).
Disconnect the start/stop button connector (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the crash pad side cover (A).
Using a screwdriver or remover, remove the fuse box cover (A).
After loosening the mounting screws, then remove the crash pad lower switch (A).
Disconnect the connectors (A).
Disconnect the hood release handle cable (A).
After loosening the mounting screws and bolts, then remove the crash pad lower panel (A).
Disconnect the diagnosis connector (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the cluster fascia panel (A).
Disconnect the trip switch connector (A).
Using a screwdriver or remover, remove the center facia panel (A).
Disconnect the start/stop button connector (A).
After loosening the mounting screws, then remove the audio assembly (A).
Disconnect the connectors (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the following items.
Crash pad side cover [LH]
Fuse box cover
Crash pad lower switch
Crash pad lower panel
Disconnect the temp control cable (A).
[LH]
Remove the glove box.
Disconnect the mode control cable (A).
[RH]
Using a screwdriver or remover, remove the heater control unit (A).
Disconnect the connectors (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Disconnect the guide (B) from the glove box (A).
Remove the glove box (A).
Installation is the reverse of removal.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the cluster fascia panel (A).
Disconnect the trip switch connector (A).
After loosening the mounting screws, then remove the side airvent center duct (A).
Disconnect the hazard switch connector (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
After loosening the mounting screws, then remove the steering column lower shroud assembly (A).
Installation is the reverse of removal.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the crash pad side cover (A).
[Driver's]
[Passenger's]
Installation is the reverse of removal.
Replace any damaged clips.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the following items.
Front seat
(Refer to the BD group – “Front Seat”)
Front pillar trim
(Refer to the BD group – “Interior Trim”)
Floor front console assembly
(Refer to the BD group – “Console”)
Front door scuff trim
(Refer to the BD group – “Interior Trim”)
Crash pad side cover [LH, RH]
Fuse box cover
Crash pad lower switch
Crash pad lower panel
Cluster fascia panel & Cluster assembly
Center fascia panel
Side airvent center duct
Audio assembly
Glove box
Heater control unit
Steering column lower shroud
Disconnect the steering column connectors.
(Refer to the ST group - "Steering Column and Shaft")
Down the steering column after loosening the mounting bolts.
(Refer to the ST group - "Steering Column and Shaft")
Disconnect the passenger`s airbag connector (A).
Loosen the mounting bolts.
Disconnect the smart key unit antenna connector (A).
After loosening the mounting bolts and nuts, screws, then remove the main crash pad assembly (A).
Installation is the reverse of removal.
Make sure the crash pad fits onto the guide pins correctly.
Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.
Take care not to scratch the body surface.
Remove the following items.
Front seat
(Refer to the BD group – “Front Seat”)
Front pillar trim
(Refer to the BD group – “Interior Trim”)
Floor front console assembly
(Refer to the BD group – “Console”)
Front door scuff trim
(Refer to the BD group – “Interior Trim”)
Cowl top cover
(Refer to the BD group - "Cowl Top Cover")
Main crash pad assembly
Disconnect the blower unit connectors.
(Refer to the HA group - "Air conditioning system, Heater, Blower")
Disconnect the multi box connectors (A).
[Driver's]
[Passenger's]
Disconnect the passenger compartment junction box connectors (A).
Remove the floor front console center air duct assembly (A).
Disconnect the airbag control module (SRSCM) connector (A).
Disconnect the antenna connector (A) and the mounting clips in the front pillar.
[Passenger's]

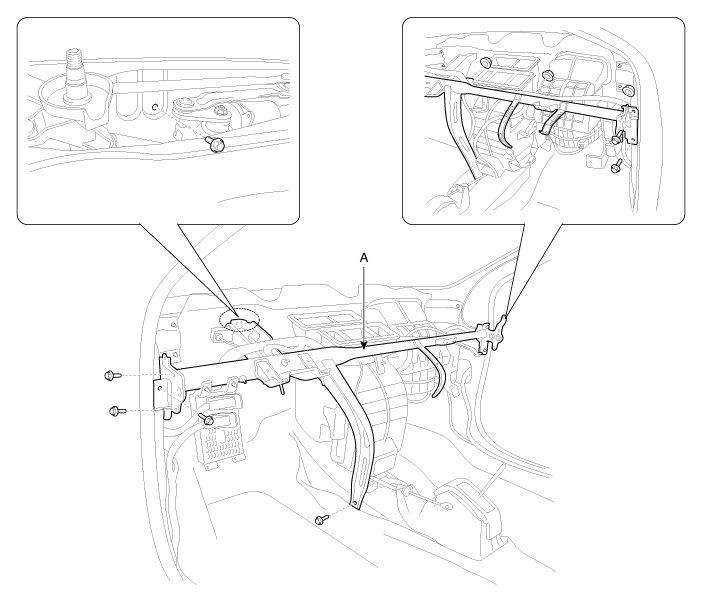

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).
Installation is the reverse of removal.
Make sure the connectors are connected in properly.
Replace any damaged clips.
