4.
Accelerate the Engine speed until about 2000 rpm in the 4th gear.
Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM
Connect Scantool
Engine "ON".

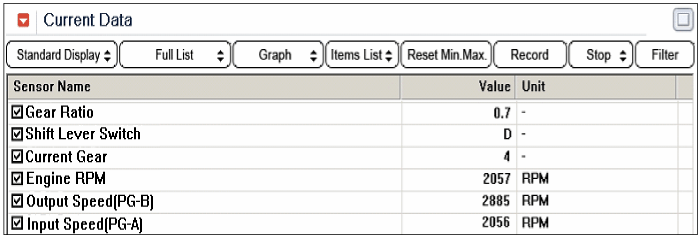

Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.
Accelerate the Engine speed until about 2000 rpm in the 4th gear.
Specification : INPUT SPEED - (OUTPUT SPEED × GEAR RATIO) ≤ 200 RPM
Are "INPUT & OUTPUT SPEED SENSOR" within specifications?
 | ▶ Go to "Component Inspection" procedure |
 | ▶ Check for electrical niose of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and Go to "Verification Vehicle Repair" procedure. |
