Removal
1.

Remove the cowl top cover.

(Refer to the BD group - "Cowl Top Cover")

2.

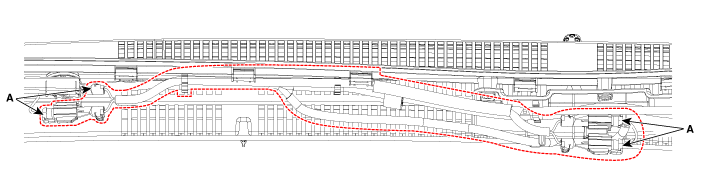

Disconnect the heated washer nozzle connectors (A).

3.

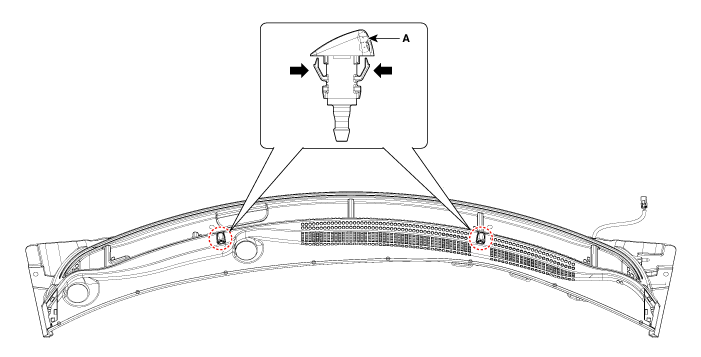

Remove the heated washer nozzle (A) after releasing the fixed hooks.
