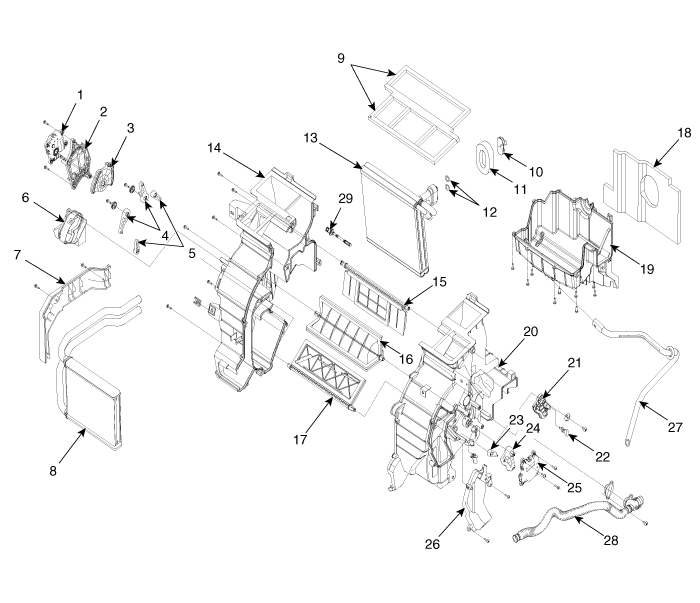

1. Mode Actuator

2. Mode Bracket

3. Mode Cam

4. Vent Sub Lever

5. Vent Lever

6. Shower Duct (LH)

7. Protection Cover

8. Heater Core

9. Duct Seal

10. Flange Cap

11. Flange Seal

12. O-ring

13. Evaporator Core

14. Heater Case (LH)

15. Vent/Defog Door

16. Foot Door

17. Temperature Door

18. NVH Pad

19. Heater Lower Case

20. Heater Case (RH)

21. Temperature Control Main Lever

22. Lever Stopper

23. Temperature Door Lever

24. Temperature Actuator Lever

25. Temperature Actuator

26. Shower Duct (RH)

27. Drain Hose

28. Aspirator Hose

29. Evaporator Temperature Sensor
