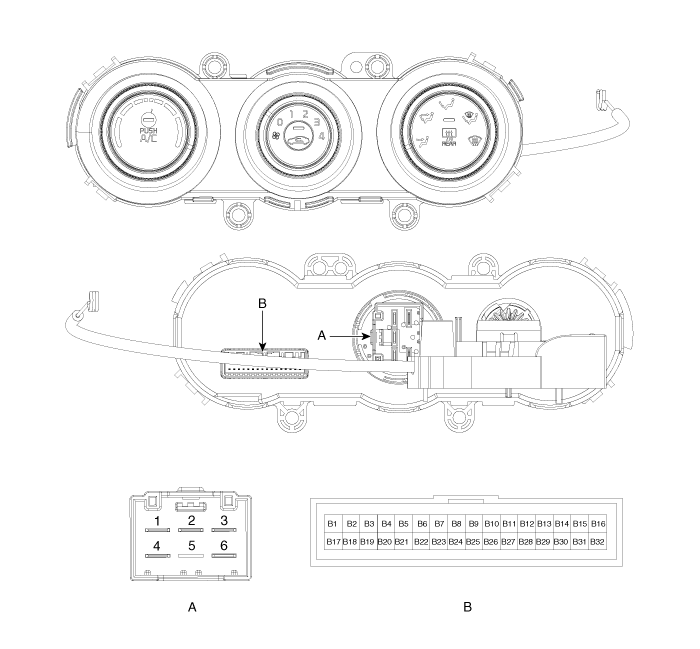

Connector | Pin no | Function | Connector | Pin no | Function | ||||
A | 1 | MIDDLE HIGH | B | 14 | Intake Actuator (REC) | ||||
2 | MIDDLE LOW | 15 | Sensor GND | ||||||
3 | GND | 16 | - | ||||||
4 | HIGH | 17 | Illumination (+) | ||||||
5 | - | 18 | Vref (+5V) | ||||||
6 | LOW | 19 | - | ||||||
B | 1 | Battery (+) | 20 | Blower F/B Signal | |||||
2 | IGN2 | 21 | Evaporator Sensor (+) | ||||||
3 | - | 22 | - | ||||||
4 | HTD (Rear Defogging Indicator) | 23 | Speed Signal | ||||||
5 | Rear Defogging Switch | 24 | A/C Output Signal (High) | ||||||
6 | Mode Actuator F/B | 25 | A/C Select Signal (High) | ||||||
7 | - | 26 | - | ||||||
8 | Intake Actuator F/B | 27 | - | ||||||
9 | Mode Actuator (VENT) | 28 | - | ||||||
10 | Mode Actuator (DEF) | 29 | - | ||||||
11 | - | 30 | Blower Common Signal (-) | ||||||
12 | - | 31 | GND | ||||||
13 | Intake Actuator (FRE) | 32 | Illumination (-) | ||||||
