Engine Control Module (ECM)

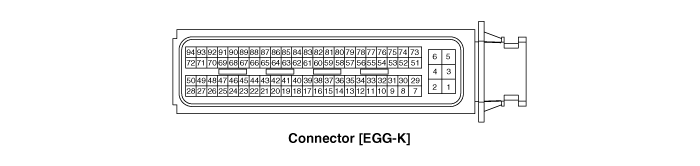

1. Harness Connector
2. Terminal Function
Connector [EGG-K]

Pin No.

Description

Connected to

1

ETC Motor (+)

ETC Module

2

ETC Motor (-)

ETC Module

3

Power Ground

Chassis Ground

4

Power Ground

Chassis Ground

5

Battery voltage supply after main relay

Main Relay

6

Battery voltage supply after main relay

Main Relay

7

Heated Oxygen Sensor (Sensor 1) Heater control output

Heated Oxygen Sensor (Sensor 1)

8

Injector (Cylinder #2) control output

Injector (Cylinder #2)

9

Injector (Cylinder #1) control output

Injector (Cylinder #1)

10

Egine speed signal output

Smart key control module

11

-



12

Start switch signal input

Ignition switch

13

Electric Load signal input (Defrost)

I/P Junction Box (Rear defogger relay)

14

A/C switch "ON" signal input

A/C Switch

15

Alternator load signal input (FR)

Alternator

16

-



17

Camshaft Position Sensor signal input

Camshaft Position Sensor (CMPS)

18

Battery voltage supply after ignition switch

Ignition Switch

19

Sensor power (+3.3V)

Accelerator Position Sensor (APS) #2

20

Sensor power (+5V)

Manifold absolute pressure sensor (MAPS)

21

Sensor power (+3.3V)

Throttle position sensor (TPS) #1,2 [ETC module]

22

Intake Air temperature sensor (IATS) signal input

Intake Air temperature sensor (IATS)

23

Manifold absolute pressure sensor (MAPS) signal input

Manifold absolute pressure sensor (MAPS)

24

Throttle position sensor (TPS) #1 signal input

Throttle position sensor (TPS) #1,2 [ETC module]

25

A/C pressure transducer (APT) signal input

A/C pressure transducer (APT)

26

Sensor ground

Camshaft Position Sensor (CMPS)

27

Ignition coil (Cylinder #3) control output

Ignition coil (Cylinder #3)

28

Ignition coil (Cylinder #1) control output

Ignition coil (Cylinder #1)

29

Purge Control Solenoid Valve control output

Purge Control Solenoid Valve (PCSV)

30

Main relay control output

Main relay

31

Cooling Fan Relay [Low] control output

Cooling Fan Relay [Low]

32

Alternator (COM)

Alternator

33

Clutch switch signal input

Clutch switch [M/T]

34

Brake switch 1 signal input

Brake lamp switch

35

-



36

Head lamp relay (Low) control output

Head lamp relay

37

A/C pressure switch signal input

A/C pressure switch

38

Brake switch 2 signal input

Brake switch

39

Vehicle speed signal input

ABS/ESP Control Module [With ABS/ESP]

40

Sensor ground

A/C Pressure Transducer (APT)

41

Sensor ground

Accelerator Position Sensor (APS) #1

42

Sensor power (+5V)

A/C pressure transducer (APT)

43

Sensor power (+3.3V)

Accelerator Position Sensor (APS) #1

44

Engine coolant temperature sensor (ECTS) signal input

Engine coolant temperature sensor (ECTS)

45

-



46

-



47

Power steering switch signal output

Power steering switch

48

-



49

Ignition Coil (Cylinder #2) control output

Ignition Coil (Cylinder #2)

50

Ignition Coil (Cylinder #4) control output

Ignition Coil (Cylinder #4)

51

Injector (Cylinder #3) control output

Injector (Cylinder #3)

52

Start relay control output

Start relay

53

Cooling Fan Relay [High] control output

Cooling Fan Relay [High]

54

Immobilizer lamp control output

Immobilizer lamp (Cluster) [W/O Smart key]

55

-



56

Crankshaft position sensor (CKPS) signal input

Crankshaft position sensor (CKPS)

57

CAN [High]

Other control module, Muti-purpose check connector [6 pin], Data link connector [16 pin]

58

LIN communication signal input

Battery sensor

59

-

60

-

61

-



62

-



63

Sensor ground

Engine Coolant Temperature Sensor (ECTS)

64

-



65

Sensor ground

Accelerator Position Sensor (APS) #2

66

Heated Oxygen Sensor (Sensor 2) Heater control output

Heated Oxygen Sensor (Sensor 2)

67

Accelerator Position Sensor (APS) #1 signal input

Accelerator Position Sensor (APS) #1

68

-



69

Accelerator Position Sensor (APS) #2 signal input

Accelerator Position Sensor (APS) #2

70

Sensor ground

Knock sensor (KS)

71

Heated Oxygen Sensor (Sensor 2) Heater control output

Heated Oxygen Sensor (Sensor 2)

72

-



73

-

74

Injector (Cylinder #4) control output

Injector (Cylinder #4)

75

Fuel Pump Relay control output (With Immobilizer/Smart key)

Fuel Pump Relay

A/C compressor relay control output (W/O Imobilizer/Smart key)

A/C compressor relay

76

Fuel Pump Relay control output  (W/O Immobilizer/Smart key)

Fuel Pump Relay

A/C compressor relay control output  (With Immobilizer/Smart key)

A/C compressor relay

77

Power ground

Chassis ground

78

Sensor ground

Crankshaft position sensor (CKPS)

79

CAN [Low]

Other control module, Muti-purpose check connector [6 pin], Data link connector [16 pin]

80

Immobilizer communication line

Immobilizer control module

81

-

82

-

83

Sensor ground

Manifold absolute pressure sensor (MAPS)

84

-



85

Sensor ground

Throttle position sensor (TPS) #1,2 [ETC module]

86

Sensor ground

Heated Oxygen Sensor (Sensor 1,2)

87

Heated Oxygen Sensor (Sensor 1) signal input

Heated Oxygen Sensor (Sensor 1)

88

Throttle position sensor (TPS) #2 signal input

Throttle position sensor (TPS) #1,2 [ETC module]

89

Blower motor switch input

Blower resister, Blower switch

90

-



91

Knock sensor (KS) signal input

Knock sensor (KS)

92

CVVT Oil Control Valve control output

CVVT Oil Control Valve (OCV)

93

-



94

-



3. Terminal input/output signal
Connector [EGG-K]

Pin

Description

Condition

In/Output Signal

Test result

Type

Level

1

ETC Motor (+)

Idle

PULSE

High :Battery voltage

13.4 V

Low : Max . 1.0V

0 V

2

ETC Motor (-)

Idle

PULSE

High :Battery voltage

13.3 V

Low : Max . 1.0V

0 V

3

Power Ground

Idle

DC voltage

Max. 50 mV



4

Power Ground

Idle

DC voltage

Max. 50 mV



5

Battery voltage supply after main relay

IG OFF

DC voltage

Max. 1.0 V

3.1 mV

IG ON

Battery voltage

12.1 V

6

Battery voltage supply after main relay

IG OFF

DC voltage

Max. 1.0 V

3.1 mV

IG ON

Battery voltage

12.1 V

7

heated oxygen sensor (Sensor 1) heater control output

Engine Run

Pulse

Hi: Battery Voltage

14.2V

Lo: Max. 1.0V

220mV

8

Injector (Cylinder #2) control output

Idle

Pulse

Hi: Battery Voltage

13.6V

Lo: Max. 1.0V

336mV

Vpeak: Max. 80V

69.7V

9

Injector (Cylinder #1) control output

Idle

Pulse

Hi: Battery Voltage

13.6V

Lo: Max. 1.0V

336mV

Vpeak: Max. 80V

69.7V

10

Egine speed signal output









11

-









12

Start switch signal input









13

Electric load signal input (Defrost)









14

A/C switch "ON" signal input

A/C S/W OFF

DC

Max.0.5V

200mV

A/C S/W ON

Battery Voltage

12.6V

15

Alternator load signal input (FR)

Idle

Pulse

Hi: Battery Voltage

13.2V

Lo: Max. 1.5V

1.34V

16

-









17

Camshaft Position Sensor (CMPS) signal input

Idle

Pulse

Hi: Battery Voltage

13.72V

Lo: Max. 0.5V

200mV

18

Battery voltage supply after ignition switch

IG OFF

DC

Max. 1.0V

200mV

IG ON

Battery Voltage

12.9V

19

Sensor power (+3.3V)

IG OFF

DC voltage

Max. 0.5V

5 mV

IG ON

3.3±0.1V

3.02 V

20

Sensor power (+5V)

IG OFF

DC

Max. 0.5V

3.6mV

IG ON

4.8 ~ 5.2V

5.02V

21

Sensor power (+3.3V)

IG OFF

DC voltage

Max. 0.5V

0 mV

IG ON

3.3±0.1V

3.02 V

22

Intake Air temperature sensor (IATS) signal input

Idle

Analog

0V ~ 5V

2.55 V

23

Manifold absolute pressure sensor (MAPS) signal input

Idle

Analog

0.8 V ~ 1.6 V

1.37 V

24

Throttle position sensor (TPS) #1 signal input

C.T

Analog

0.3 ~ 0.9V

0.65 V

W.O.T

1.5 ~ 3.0V

1.63 V

25

A/C pressure transducer (APT) signal input

A/C ON

Analog

Max. 4.8V

1.88V

26

Sensor ground

Idle

DC

Max. 50mV

12mV

27

Ignition coil (Cylinder #3) control output

Idle

Pulse

1st Voltage: 300 ~ 400V

372V

ON Voltage: Max. 2.0V

1.1V

28

Ignition coil (Cylinder #1) control output

Idle

Pulse

1st Voltage: 300 ~ 400V

372V

ON Voltage: Max. 2.0V

1.1V

29

Purge Control Solenoid Valve control output

Active

Pulse

Hi: Battery Voltage

14.2V

Inactive

Lo: Max. 1.0V

120mV

30

Main relay control output

Relay OFF

DC voltage

Max. 2.64 V

Relay ON

Battery voltage

31

Cooling Fan Relay [Low] control output

Relay OFF

DC

Battery Voltage

14.12V

Relay ON

Max. 1.0V

61.6mV

32

Alternator (COM)









33

-









34

Brake switch 1 signal input

Brake ON

DC voltage

Battery voltage



Brake OFF

Max. 0.5 V

35

-









36

Head lamp relay (Low) control output









37

A/C pressure switch signal input

A/C S/W OFF

DC

Max.0.5V

200mV

A/C S/W ON

Battery Voltage

12.6V

38

Brake switch 2 signal input

PUSH

DC voltage

Max. 0.5 V



Normal

Battery voltage

39

Vehicle speed signal input

Engine run

PULSE

High : Min. 4.5V

5 V

Low : Max. 0.5V

0 V

40

Sensor ground

Idle

DC

Max. 50mV



41

Sensor ground

Idle

DC voltage

Max. 50 mV

30 mV

42

Sensor power (+5V)

IG OFF

DC voltage

Max. 0.5V



IG ON

5±0.1V

43

Sensor power (+3.3V)

IG OFF

DC voltage

Max. 0.5V

5 mV

IG ON

3.3±0.1V

3.02 V

44

Engine coolant temperature sensor (ECTS) signal input

Idle

Analog

0.5 ~ 4.5V

1.43V

45

-









46

-









47

Power steering switch signal output









48

-









49

Ignition Coil (Cylinder #2) control output

Idle

Pulse

1st Voltage: 300 ~ 400V

372V

ON Voltage: Max. 2.0V

1.1V

50

Ignition Coil (Cylinder #4) control output

Idle

Pulse

1st Voltage: 300 ~ 400V

372V

ON Voltage: Max. 2.0V

1.1V

51

Injector (Cylinder #3) control output

Idle

Pulse

Hi: Battery Voltage

13.6V

Lo: Max. 1.0V

336mV

Vpeak: Max. 80V

69.7V

52

Start relay control output









53

Cooling Fan Relay [High] control output









54

Immobilizer lamp control output

lamp OFF

DC voltage

High :Battery voltage

13.2 V

lamp ON

Low : Max . 2.0V

40 mV

55

-









56

Crankshaft position sensor (CKPS) signal input

Idle



Vp_p: Min. 1.0V

6.48V

57

CAN [High]

RECESSIVE

PULSE

2.0 ~ 3.0 V

2.58 V

DOMINANT

2.75∼4.5 V

3.54 V

58

LIN communication signal input









59

-









60

-









61

-









62

-









63

Sensor ground

Idle

DC

Max. 50mV

16.8mV

64

-









65

Sensor ground

Idle

DC voltage

Max. 50 mV

30 mV

66

Heated Oxygen Sensor (Sensor 2) Heater control output

Engine run

PULSE

High :Battery voltage

14V

Low : Max. 1.0V

0.31V

67

Accelerator Position Sensor (APS) #1 signal input

C.T

Analog

0.2 ~ 0.7V

0.5 V

W.O.T

1.2 ~ 2.4V

2.1V

68

-









69

Accelerator Position Sensor (APS) #2 signal input

C.T

Analog

0.2 ~ 0.7V

0.5 V

W.O.T

1.2 ~ 2.4V

2.1V

70

Sensor ground

Idle

DC voltage

Max. 50 mV

8 mV

71

Heated Oxygen Sensor (Sensor 2) Heater control output

Engine run

PULSE

High :Battery voltage

14V

Low : Max. 1.0V

0.31V

72

-









73

-

74

Injector (Cylinder #4) control output

Idle

Pulse

Hi: Battery Voltage

13.6V

Lo: Max. 1.0V

336mV

Vpeak: Max. 80V

69.7V

75

Fuel Pump Relay control output (With Immobilizer/Smart key)

relay OFF

DC voltage

Battery voltage

12.8 V

relay ON

Max. 1.0V

40 mV

Vpeak : Max. 70V

47.3 V

Resistance : 680 Ω

680 Ω

A/C compressor relay control output (W/O Imobilizer/Smart key)

A/C OFF

DC voltage

Battery voltage

14.3 V

A/C ON

Max. 1.0V

102 mV

76

Fuel Pump Relay control output  (W/O Immobilizer/Smart key)

relay OFF

DC voltage

Battery voltage

12.8 V

relay ON

Max. 1.0V

40 mV

Vpeak : Max. 70V

47.3 V

Resistance : 680 Ω

680 Ω

A/C compressor relay control output  (With Immobilizer/Smart key)

A/C OFF

DC voltage

Battery voltage

14.3 V

A/C ON

Max. 1.0V

102 mV

77

Power ground

78

Sensor ground

Idle

DC voltage

Max. 50 mV

11 mV

79

CAN [Low]

RECESSIVE

PULSE

2.0 ~ 3.0 V

2.64 V

DOMINANT

0.5∼2.25 V

1.52 V

80

Immobilizer communication line

After IG.ON

PULSE

High : Min. 8.5V

11.8 V

Communication

Low : Max . 3.5V

1.0 V

81

-









82

-









83

Sensor ground

Idle

DC voltage

Max. 50 mV

7 mV

84

-









85

Sensor ground

Idle

DC voltage

Max. 50 mV

6 mV

86

Sensor ground

Idle

DC voltage

Max. 50 mV

10 mV

87

Heated Oxygen Sensor (Sensor 1) signal input

Idle

DC voltage

Rich : 0.6 ∼ 1.0V

740 mV

Lean : Max. 0.4V

70 mV

88

Throttle position sensor (TPS) #2 signal input

C.T

Analog

4.2 ~ 5.0V

4.52 V

W.O.T

3.3 ~ 3.8V

3.68 V

89

Blower motor switch input









90

-









91

Knock sensor (KS) signal input

Knocking

Irregula Frequency

0.3 ~ 0.3 V

Normal

Normal

0 V

92

CVVT Oil Control Valve control output

Idle

PULSE

High :Battery voltage

15.0 V

Low : Max. 1.0V

120 mV

Vpeak : Max. 70V

15.0 V

93

-









94

-

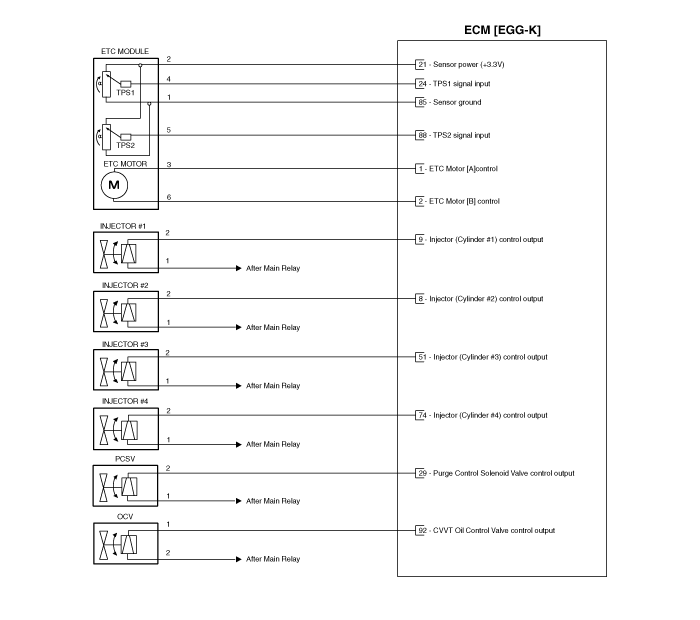

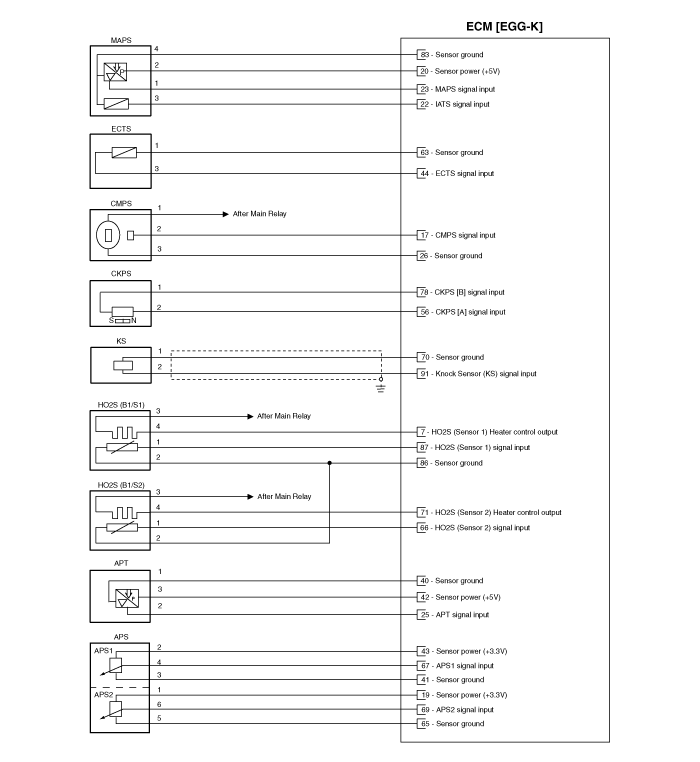

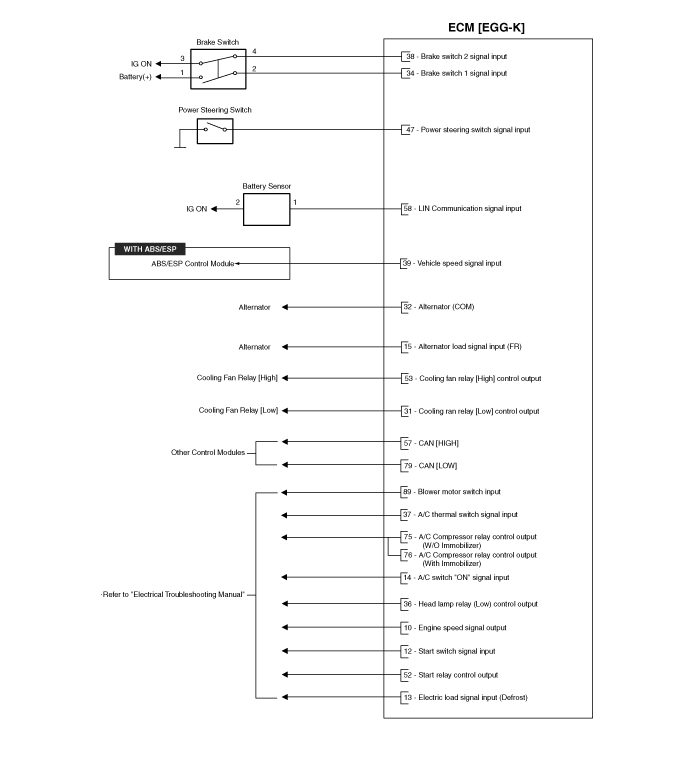

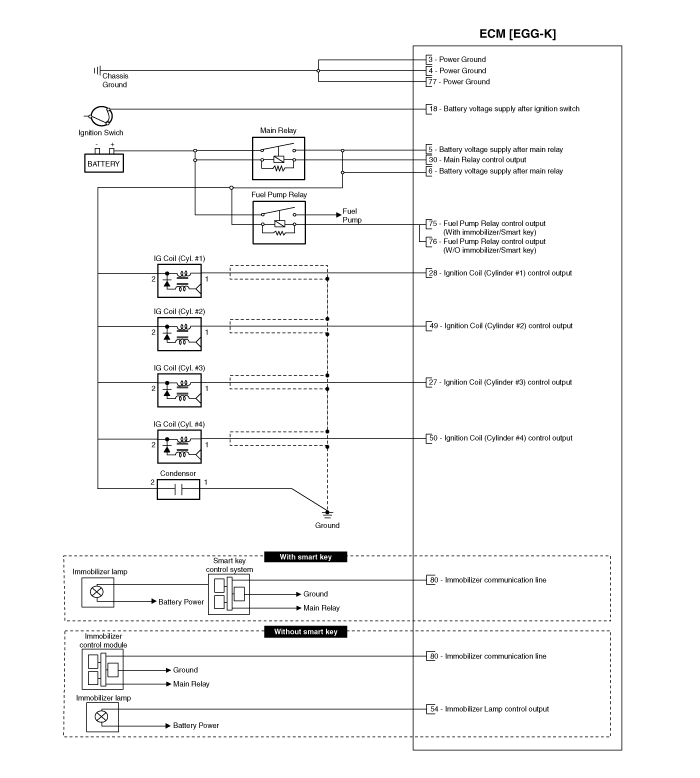

Circuit Diagram
Яндекс.Метрика
