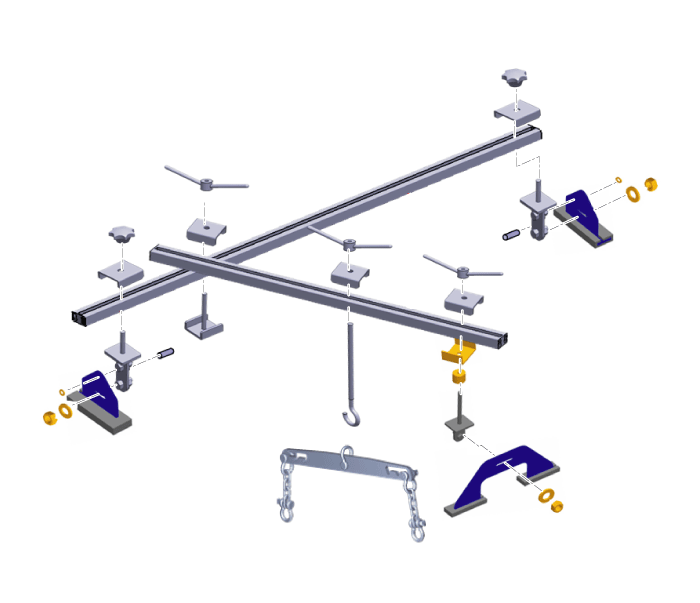

Engine support fixture (bar)

09200-3N000

Used for holding engine assembly when removing / installing transaxle

Used with the adapter (09200-4X000) and supporter (09200-2S000)

Engine support fixture (supporter)

A : 09200-2S000

B : 09200-2S100

C : 09200-2S200

Used for holding engine assembly when removing / installing transaxle

Used with the bar (09200-3N000) and adapret (09200-4X000)

Engine support fixture (adapter)

09200-4X000

Used for holding engine assembly when removing / installing transaxle

Used with the bar (09200-3N000) and supporter (09200-2S000)

Oil seal installer

A: 09452-26100 (Installer)

B: 09231-H1100 (Handle)

Used for installing differential oil seal

Inhibitor switch guide pin

09480-A3800

Used for fixing "N" range when installing inhibitor switch
