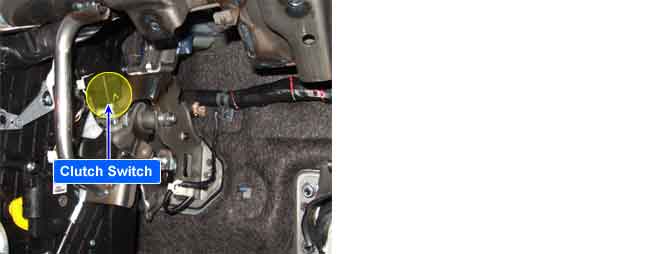

The clutch switch is used for the Hill start Assist Control function.
If a clutch signal failure continues for a given time, a failure is recognized.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Clutch signal monitoring | 1. Open or short clutch switch 2. Faulty clutch switch |
Monitoring Period |
•
Continuous | |
Enable Conditions |
•
During driving more than 60KPH and stop 5 times, there is no change of clutch switch state.
•
If the clutch switch state changed more than 40 times for 5sec. | |
Fail-Safe |
•
Inhibit the DBC control and allow the ABS/EBD/ESP control.
•
The DBC warning lamp is activated. |
