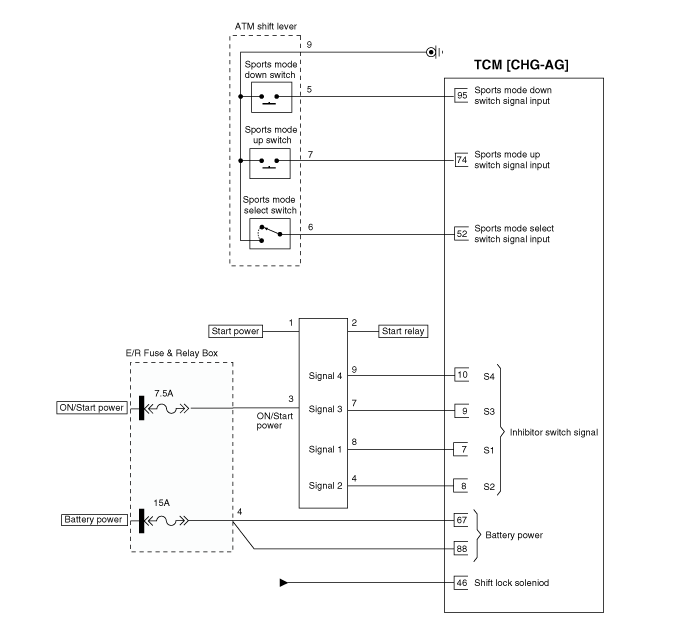

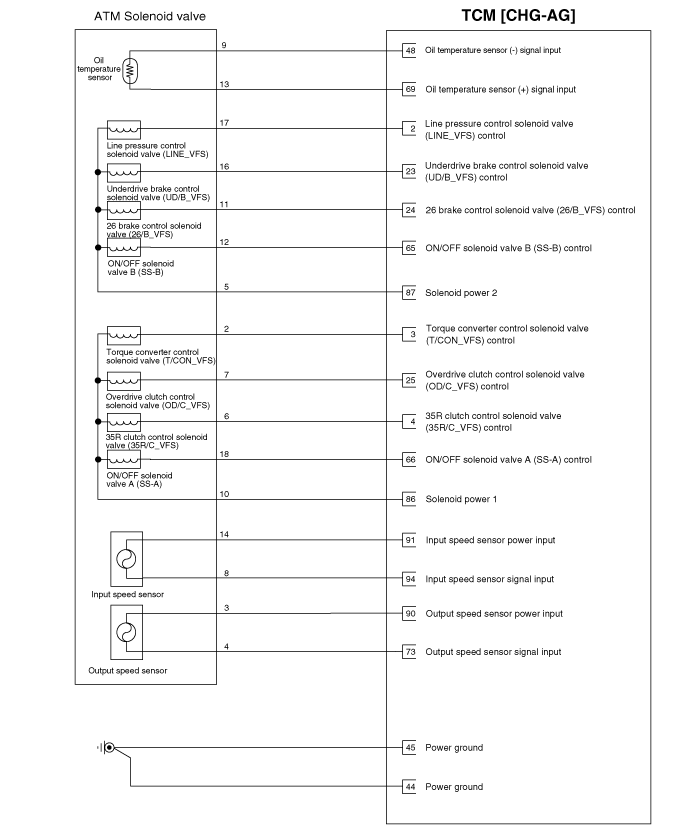

Pin | Description | Pin | Description |
1 | - | 54 | - |
2 | Line pressure control solenoid valve (LINE_VFS) | 55 | - |
3 | Torque converter control solenoid valve (T/CON_VFS) | 56 | - |
4 | 35R clutch control solenoid valve (35R/C_VFS) | 57 | - |
5 | - | 58 | - |
6 | - | 59 | - |
7 | Inhibitor switch signal "S1" | 60 | - |
8 | Inhibitor switch signal "S2" | 61 | - |
9 | Inhibitor switch signal "S3" | 62 | - |
10 | Inhibitor switch signal "S4" | 63 | - |
11 | - | 64 | - |
12 | - | 65 | ON/OFF solenoid valve B(SS-B) |
13 | - | 66 | ON/OFF solenoid valve B(SS-A) |
14 | - | 67 | Battery (B+) |
15 | - | 68 | - |
16 | - | 69 | Oil temperature sensor (+) |
17 | - | 70 | - |
18 | - | 71 | - |
19 | - | 72 | - |
20 | - | 73 | Output speed sensor signal |
21 | - | 74 | Sports mode up switch |
22 | - | 75 | - |
23 | Underdrive brake control solenoid valve (UD/B_VFS) | 76 | - |
24 | 26 brake control solenoid valve (26/B_VFS) | 77 | - |
25 | Overdrive clutch control solenoid valve (OD/C_VFS) | 78 | - |
26 | - | 79 | - |
27 | - | 80 | - |
28 | - | 81 | - |
29 | - | 82 | - |
30 | - | 83 | - |
31 | - | 84 | - |
32 | - | 85 | - |
33 | - | 86 | Solenoid supply power 1 |
34 | - | 87 | Solenoid supply power 2 |
35 | - | 88 | Battery (B+) |
36 | - | 89 | - |
37 | - | 90 | Output speed sensor power |
38 | - | 91 | Input speed sensor power |
39 | - | 92 | - |
40 | - | 93 | - |
41 | - | 94 | Input speed sensor signal |
42 | - | 95 | Sports mode down switch |
43 | - | 96 | - |
44 | Ground (Power 1) | 97 | - |
45 | Ground (Power 2) | 98 | - |
46 | Shift lock solenoid | 99 | - |
47 | - | 100 | - |
48 | Oil temperature sensor (-) | 101 | - |
49 | - | 102 | - |
50 | - | 103 | - |
51 | - | 104 | - |
52 | Sports mode select switch | 105 | - |
53 | - |
|
Pin | Description | Condition | Input/output value | |
Type | Level | |||
1 | - |
|
|
|
2 | Line pressure control solenoid valve (LINE_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
3 | Torque converter control solenoid valve (T/CON_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
4 | 35R clutch control solenoid valve (35R/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
5 | - |
|
|
|
6 | - |
|
|
|
7 | Inhibitor switch signal "S1" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
8 | Inhibitor switch signal "S2" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
9 | Inhibitor switch signal "S3" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
10 | Inhibitor switch signal "S4" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
11 | - |
|
|
|
12 | - |
|
|
|
13 | - |
|
|
|
14 | - |
|
|
|
15 | - |
|
|
|
16 | - |
|
|
|
17 | - |
|
|
|
18 | - |
|
|
|
19 | - |
|
|
|
20 | - |
|
|
|
21 | - |
|
|
|
22 | - |
|
|
|
23 | Underdrive brake control solenoid valve (UD/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
24 | 26 brake control solenoid valve (26/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
25 | Overdrive clutch control solenoid valve (OD/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL1 | ||||
26 | - |
|
|
|
27 | - |
|
|
|
28 | - |
|
|
|
29 | - |
|
|
|
30 | - |
|
|
|
31 | - |
|
|
|
32 | - |
|
|
|
33 | - |
|
|
|
34 | - |
|
|
|
35 | - |
|
|
|
36 | - |
|
|
|
37 | - |
|
|
|
38 | - |
|
|
|
39 | - |
|
|
|
40 | - |
|
|
|
41 | - |
|
|
|
42 | - |
|
|
|
43 | - |
|
|
|
44 | Ground (Power 1) |
| Ground | 0V |
45 | Ground (Power 2) |
| Ground | 0V |
46 | Shift lock solenoid | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
47 | - |
|
|
|
48 | Oil temperature sensor (-) |
| Ground | 0V |
49 | - |
|
|
|
50 | - |
|
|
|
51 | - |
|
|
|
52 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
53 | - |
|
|
|
54 | - |
|
|
|
55 | - |
|
|
|
56 | - |
|
|
|
57 | - |
|
|
|
58 | - |
|
|
|
59 | - |
|
|
|
60 | - |
|
|
|
61 | - |
|
|
|
62 | - |
|
|
|
63 | - |
|
|
|
64 | - |
|
|
|
65 | ON/OFF solenoid valve B(SS-B) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
66 | ON/OFF solenoid valve A (SS-A) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
67 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
68 | - |
|
|
|
69 | Oil temperature sensor (+) | ON | Input | 0V/3.3V |
OFF | ||||
70 | - |
|
|
|
71 | - |
|
|
|
72 | - |
|
|
|
73 | Output speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
74 | Sports mode up switch | Up ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
75 | - |
|
|
|
76 | - |
|
|
|
77 | - |
|
|
|
78 | - |
|
|
|
79 | - |
|
|
|
80 | - |
|
|
|
81 | - |
|
|
|
82 | - |
|
|
|
83 | - |
|
|
|
84 | - |
|
|
|
85 | - |
|
|
|
86 | Solenoid supply power 1 | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
87 | Solenoid supply power 2 | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
88 | Battery power (B+) | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
89 | - |
|
|
|
90 | Output speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
91 | Input speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
92 | - |
|
|
|
93 | - |
|
|
|
94 | Input speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
95 | Sports mode down switch | Down ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
96 | - |
|
|
|
97 | - |
|
|
|
98 | - |
|
|
|
99 | - |
|
|
|
100 | - |
|
|
|
101 | - |
|
|
|
102 | - |
|
|
|
103 | - |
|
|
|
104 | - |
|
|
|
105 | - |
|
|
|
