POWER DISTRIBUTION MODULE
Current data
1.

If engine does not start with blinking immobilizer indicator lamp, monitor change of current data at IG key "OFF".

2.

Check if its signal changes from "OFF" to "ON" when SSB(Start Stop Button) is operated.

■ Reference data

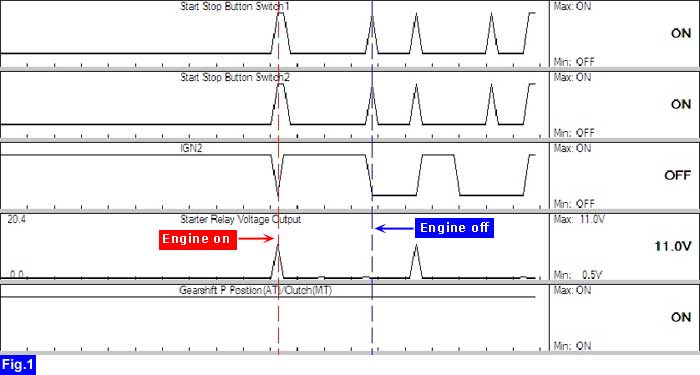

Fig.1) Normal current data while changing from engine "ON" to "OFF"

caution

This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.

3.

Is the displayed current data normal when SSB(Start Stop Button) is operated?

▶ Check for "Brake ON/OFF" signal.

▶ Check for "P" position signal.

▶ Check fuse and "Start Stop Button" circuit.

▶ Check for open/short to "SSB SW-1" terminal between "START STOP BUTTON SWITCH" harness connector and "PDM" harness connector.

▶ Check "SMK" and "CAN communication line".

▶ Check "PDM".
