1.

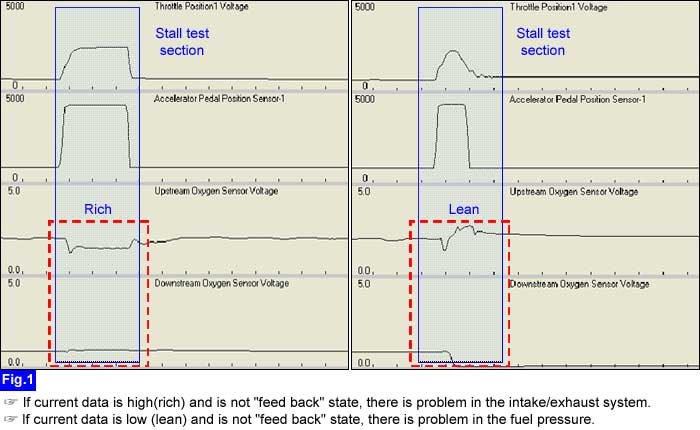

Monitor current data after engine warming up.
1) "Throttle Position Sensor 1 Voltage" and "Oxygen Sensor Bank1/Sensor1" at idle ("D" range)
2) "Throttle Position Sensor 1 Voltage" and "Oxygen Sensor Bank1/Sensor1" at stall test.
■ Specification
caution
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
