Monitor current data after engine warming up.
■ Specification
Items | Test condition | Output voltage(V) |
TPS1 | C.T | 0.3 ~ 0.9 V |
W.O.T | 1.5 ~ 3.0 V | |
TPS2 | C.T | 4.2 ~ 5.0 V |
W.O.T | 3.3 ~ 3.8 V |

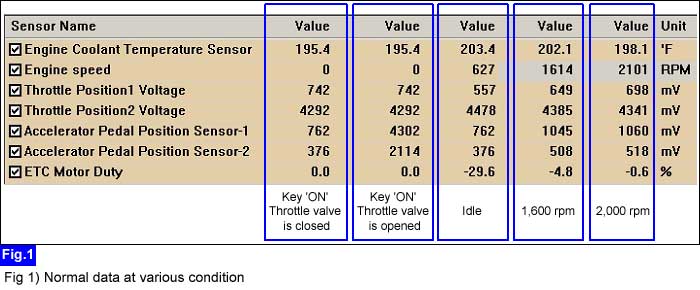

This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Is current data normal?
 | ▶ Go to "MAPS inspection" procedure. ▶ Go to "ETC system inspection" procedure. ▶ Go to "ECTS inspection" procedure. |
 | ▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. ▶ Check for open circuit in the TPS circuit . ▶ Check for short to ground in the TPS circuit . ▶Substitute with a known-good TPS and check for proper operation. If the problem is corrected, Replace the TPS. |
