HIGH PRESSURE FUEL SYSTEM
Current data
1.

Monitor change of current data at IG key "START".

■ Specification : 40~120bar

Engine state

Idle

1,500RPM

6,300RPM

Fail

Fuel pressure

40bar

90~100bar

135bar

4.5bar

■ Reference data

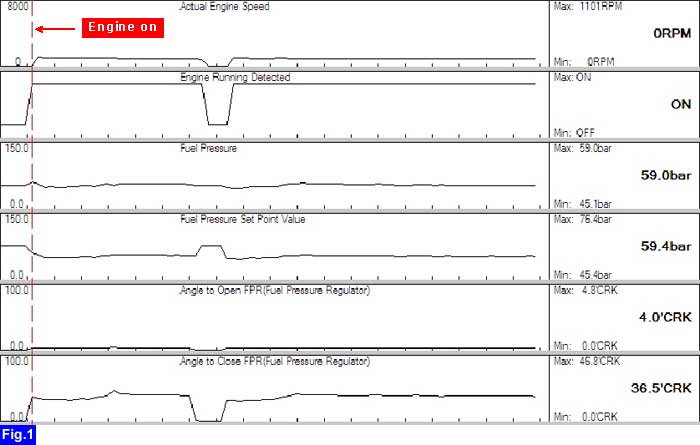

Fig.1) Normal current data at IG key "START"

caution

This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.

2.

Is the displayed current data normal?

▶ High pressure fuel system is normal.

▶ Check RPS.

▶ Check fuel pressure regulator.

▶ Check high pressure fuel pump.
