2.

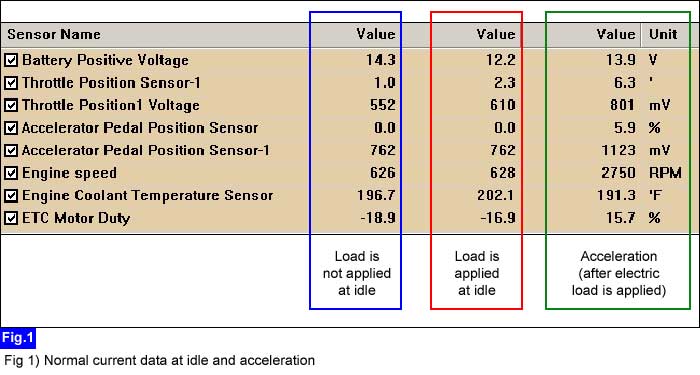

Monitor current data at 2,000 rpm (idle)
■ Specification : 12.0 ~14.8 V
caution
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Turn on A/CON and electric devices (head lamp, defogger…etc).
Monitor current data at 2,000 rpm (idle)
■ Specification : 12.0 ~14.8 V
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Is battery voltage normal?
 | ▶ Go to "Coolant inspection" procedure. ▶ Go to "Cooling fan inspection" procedure. ▶ Go to "Spark plug inspection" procedure. |
 | ▶ Check electrical accessory installation. ▶ Check tension of the alternator belt. ▶ Check battery terminal and B+ terminal of the alternator (tightening condition and corrosion). ▶ Replace battery and alternator. |
