3.

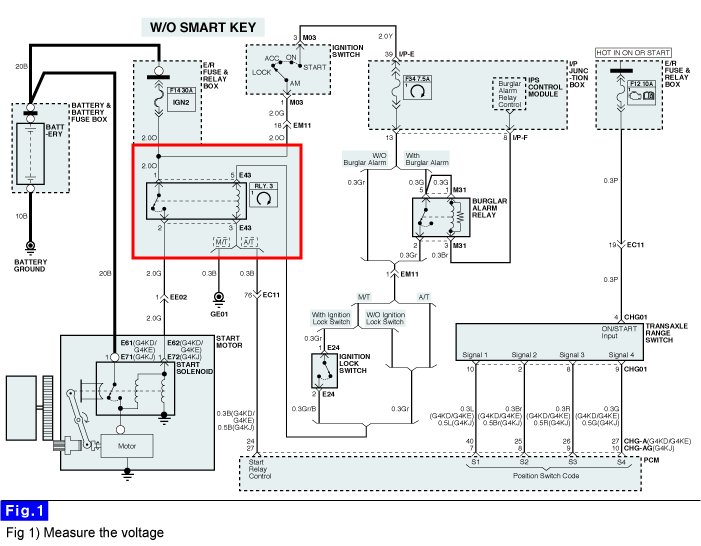

Measure the voltage between "ST" terminal of the starter and battery (-) terminal.
■ Specification : B+
Disconnect start relay(RLY3) and "ST" signal harness connector of the starter.

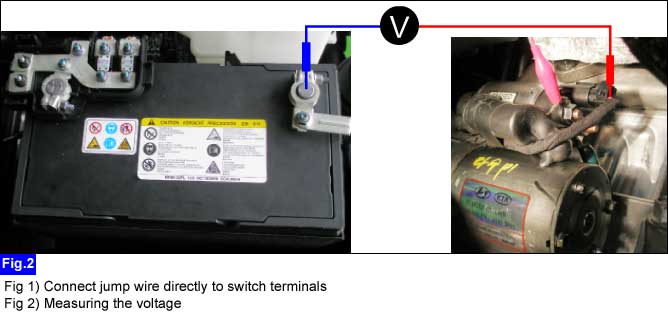

Connect jump wire directly to switch terminals of the start relay(RLY3) on the E/R fuse & relay box.
Measure the voltage between "ST" terminal of the starter and battery (-) terminal.
■ Specification : B+
Is measured voltage within the specification?
 | ▶ Go to "Start relay circuit inspection" procedure. |
 | ▶ Check for open circuit or poor connection between "ST signal" of the starter and E/R fuse & relay box. |
