Monitor change of current data while idling and accelerating.
■ Reference data

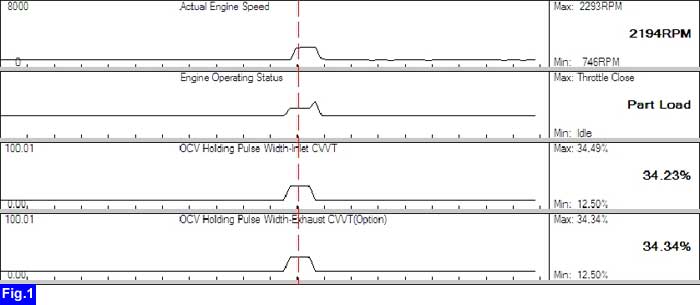

Fig.1) Normal current data at accelerate
This current data is nothing but an example at certain condition. Thus, the real current data could be different from this example.
Is the displayed current data normal ?
 | ▶ OCV is normal. |
 | ▶ Go to "OCV resistance inspection" procedure as below. |
Measure the resistance between "OCV_Power" terminal and "OCV_ Control" terminal after disconnecting "OCV" connector.
■ Specification : 6.9~7.9Ω(20℃, 68℉)
Is the measured resistance value normal?
| ▶ Check/repair OCV circuit. |
| ▶ Replace OCV. |
