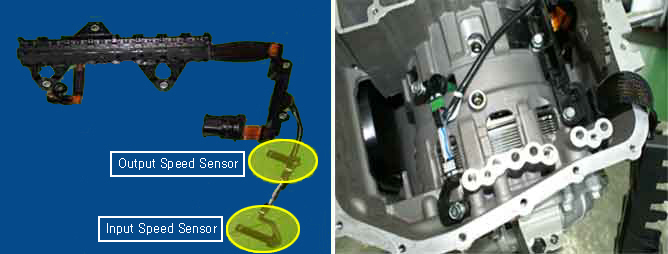

Input/output speed sensor is one body and installed in transmission. It's used hall sensor of an electric current type, and current is changed by magnetic variation. Each sensors are composite 2 pins and TCM supplied power to sensor and controled by TCM.
This code is set when vehicle speed is above 20km/h but output speed signal is not detected by Output speed sensor.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Circuit no signal |
•
Signal citcuit open/short
•
Power supplied citcuit open/short
•
Output speed sensor
•
TCM |
Enable Conditions |
•
TR switch = "D"range
•
Vehicle Speed > 20km/h
•
Engine speed > 400rpm
•
Battery voltage > 10V | |
Threshold value |
•
Output speed = 0rpm | |
Detecting Time |
•
More than 4sec | |
Fail safe |
•
Locked into 4th gear
•
Sports mode 2 <-> 3 <-> 4 possible
•
Teaching not allow |
Classification | Output Voltage |
At HIGH | 1.18 ~ 1.68V (11.8 ~ 16.8mA) |
At LOW | 0.59 ~ 0.84V (5.9 ~ 8.4mA) |

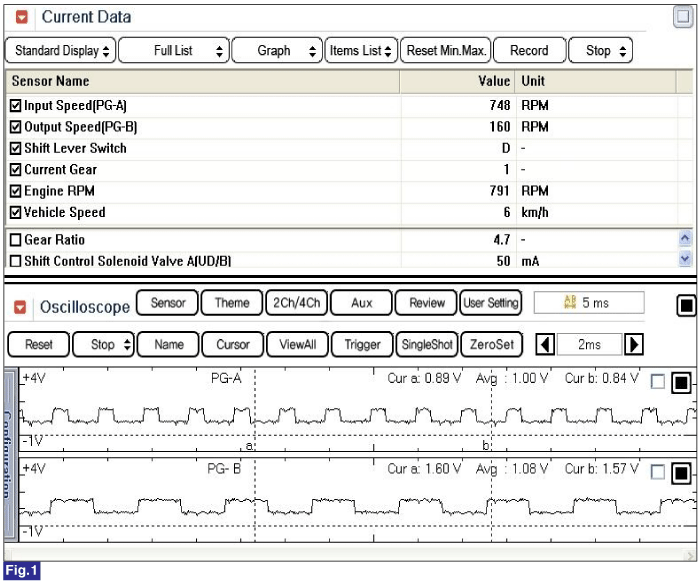

Fig 1) Input/Output speed sensor at low speed

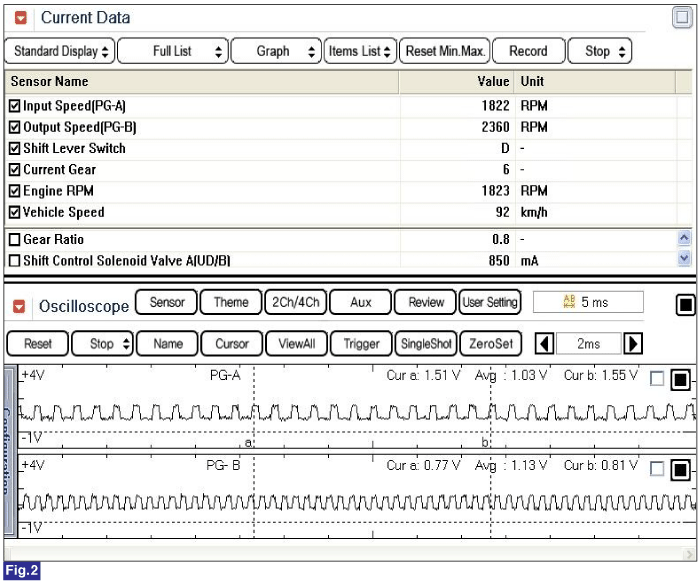

Fig 2) Input/Output speed sensor at high speed
