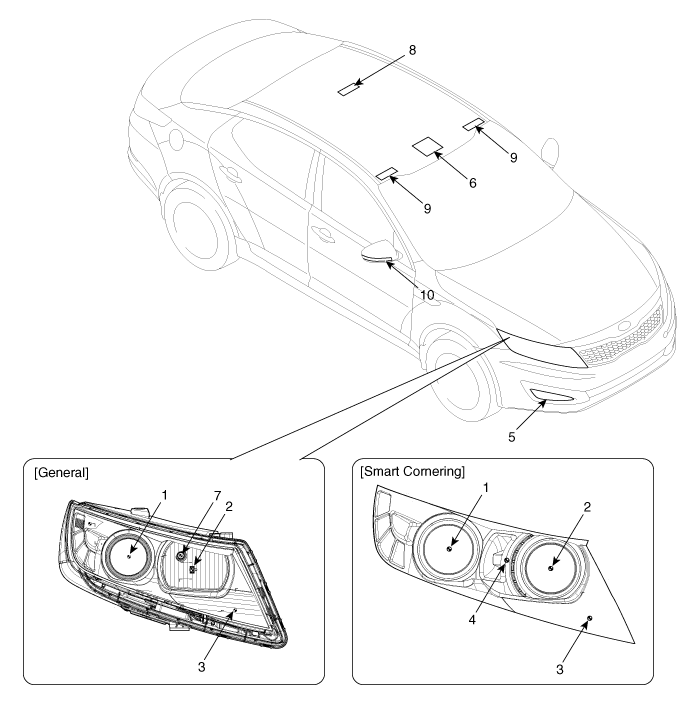

Component Location(1)

1. Head lamp (Low)

2. Head lamp (High)

3. Turn signal

4. Smart cornering lamp

5. Front fog lamp

6. Overhead console lamp

7. Position lamp

8. Room lamp

9. Vanity lamp

10. Door mirror side repeater(LED)

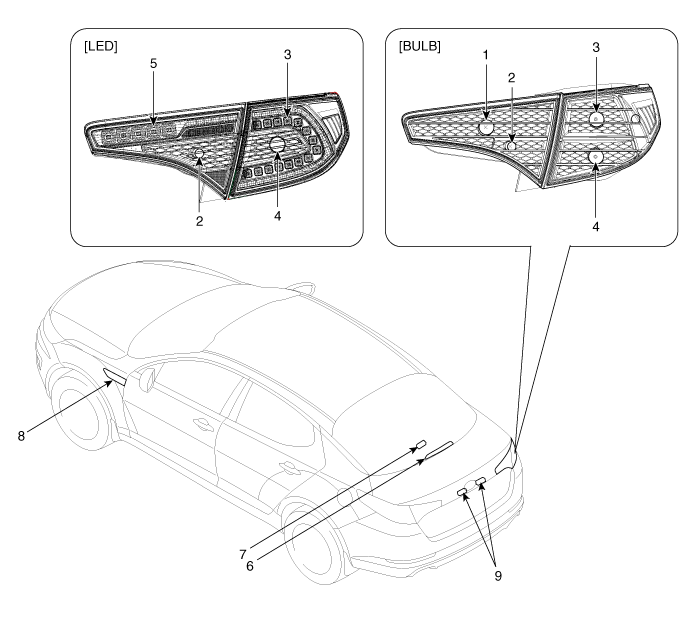

Component Location(2)

1. Tail lamp

2. Back up lamp

3. Stop/Tail lamp

4. Rear turn signal lamp

5. Rear fog lamp

6. High mounted stop lamp

7. Luggage lamp

8. Side repeater

9. License plate lamp
