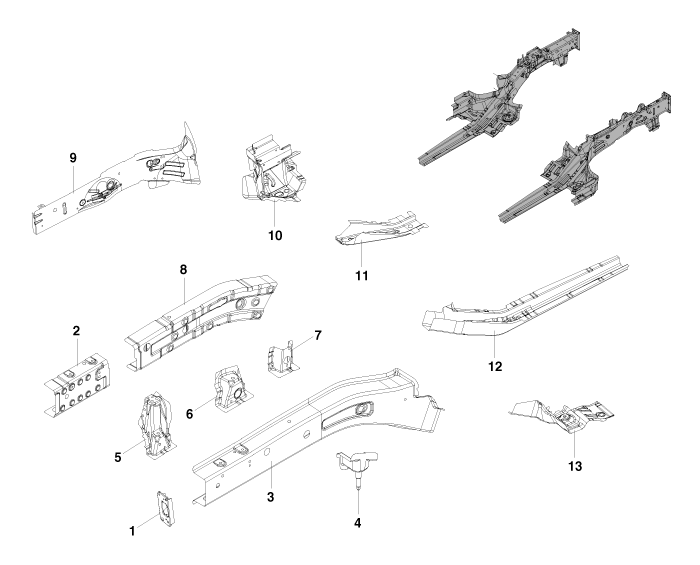

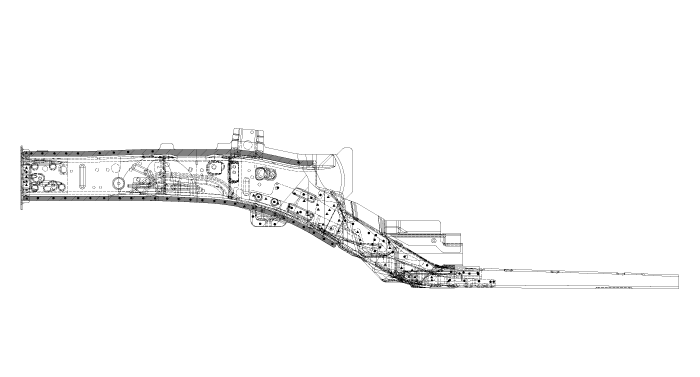

1

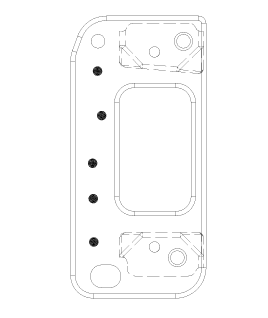

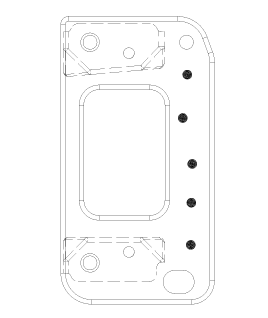

Front end module mounting bracket

8

Front side member inner reinforcement

2

Front side member inner front reinforcement

9

Front side outer member

3

Front side inner member

10

Front side outer extension

4

Subframe front mounting bracket

11

Front side rear upper reinforcement

5

Engine mounting bracket

12

Front side rear upper member

6

Engine mounting rear bracket

13

Front side rear lower member

7

Shock absorber housing support

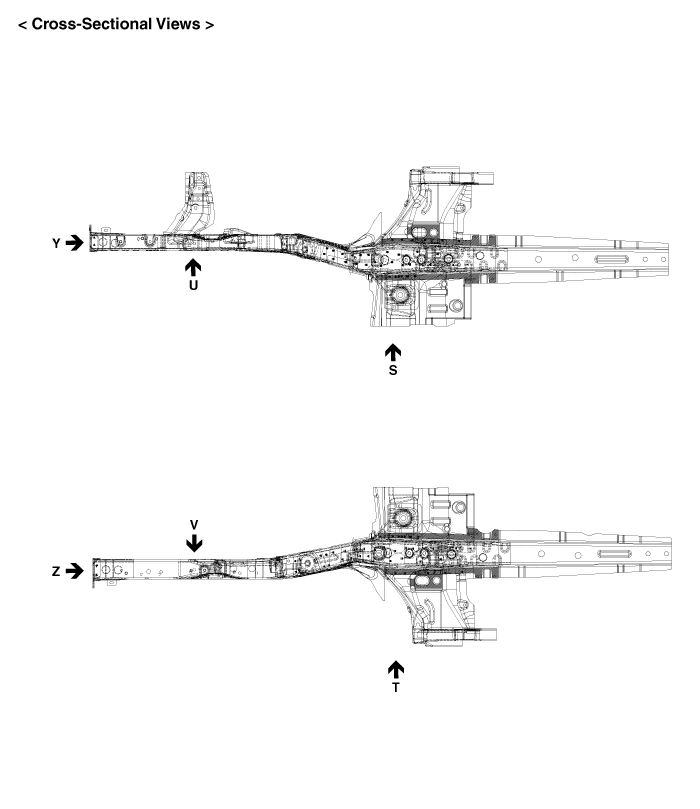

S

T

U

V

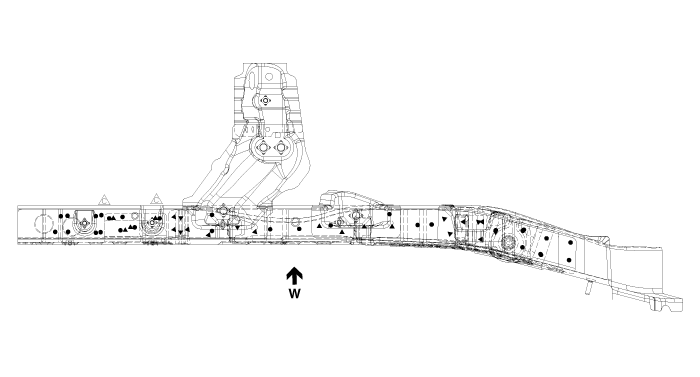

W

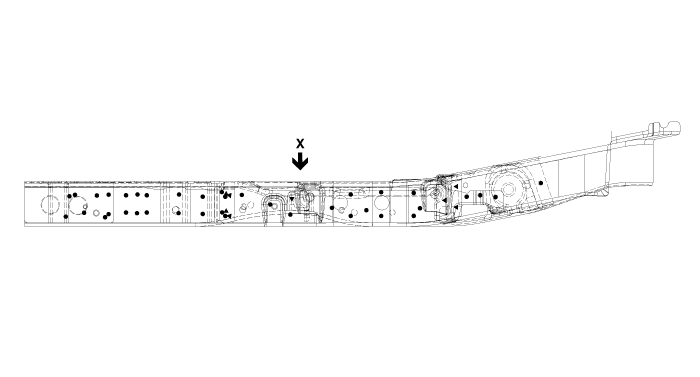

X

Y

Z
