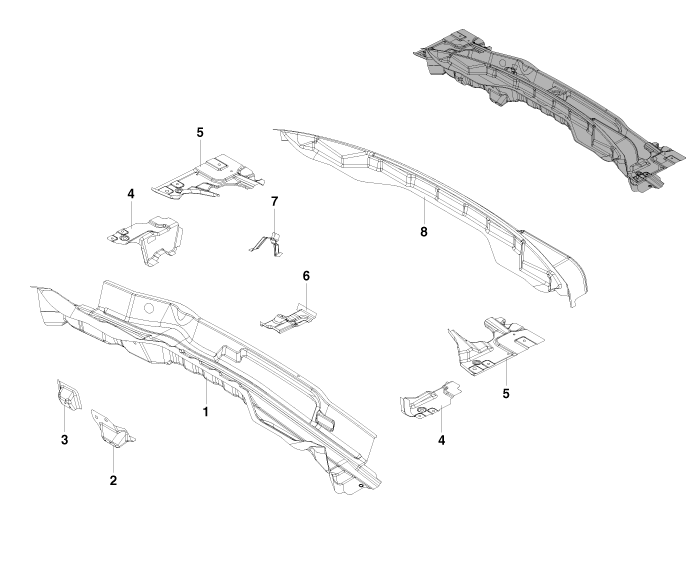

1

Cowl top panel

5

Shock absorber housing gusset

2

Brake pedal support mounting bracket

6

Cowl top center reinforcement

3

Clutch pedal mounting bracket

7

Wiper motor mounting bracket

4

Cowl side upper inner panel

8

Cowl top upper reinforcement

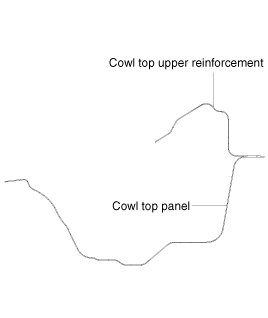

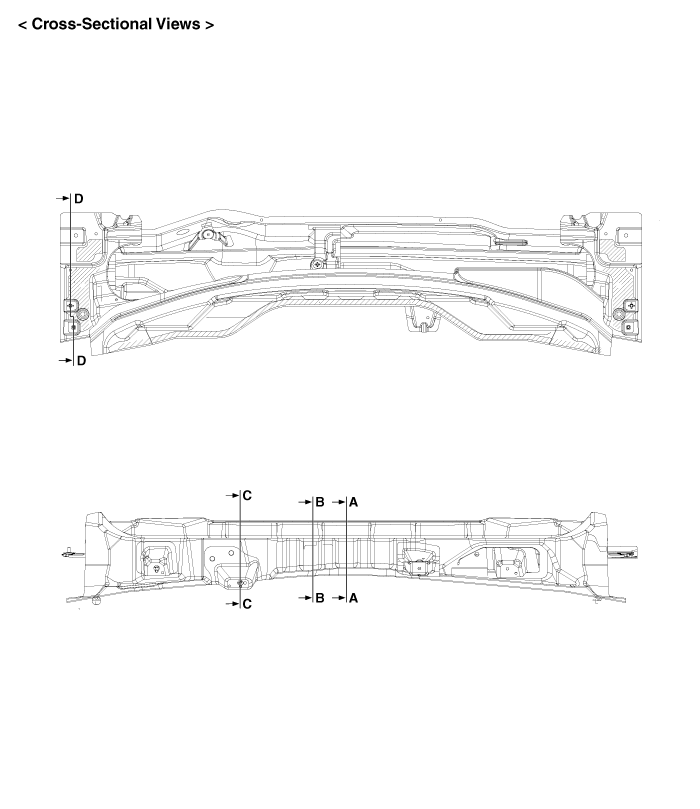

A - A

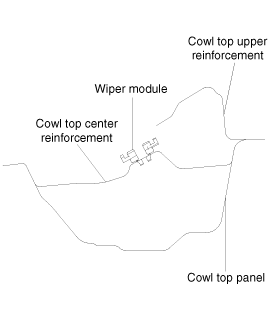

B - B

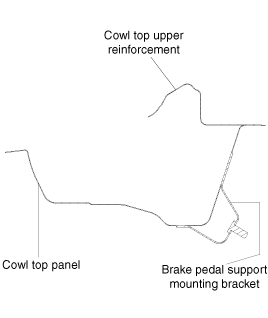

C - C

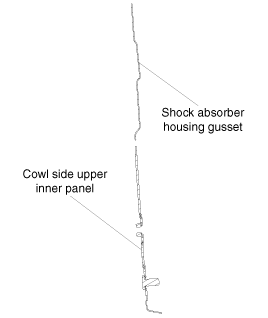

D - D
