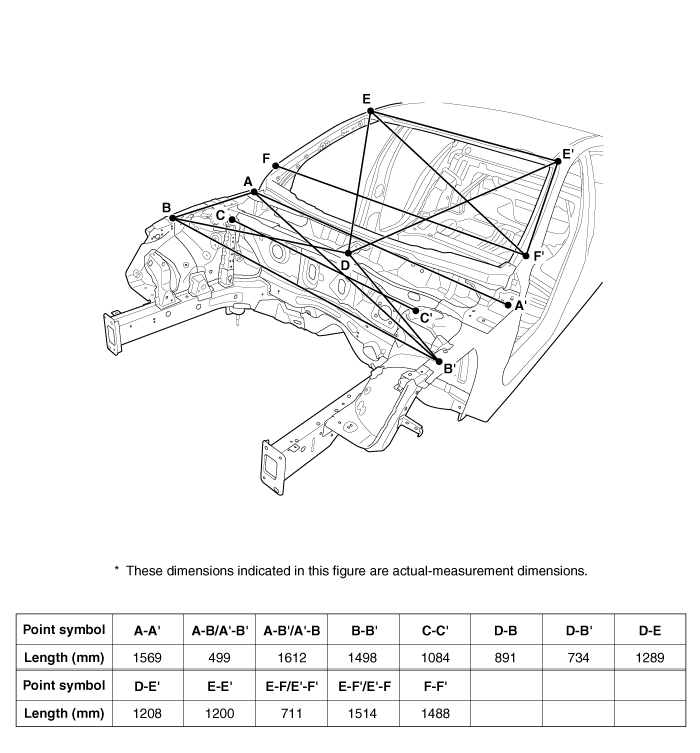

Hood hinge mounting hole (Ø10)
Fender apron upper inner panel tooling hole (Ø6.6)
Front suspension mounting hole (Ø11)
Cowl panel tooling hole (Ø8)
Front pillar corner
Front pillar corner
| | |
Hood hinge mounting hole (Ø10) | Fender apron upper inner panel tooling hole (Ø6.6) | Front suspension mounting hole (Ø11) |
| | |
Cowl panel tooling hole (Ø8) | Front pillar corner | Front pillar corner |
| |  |

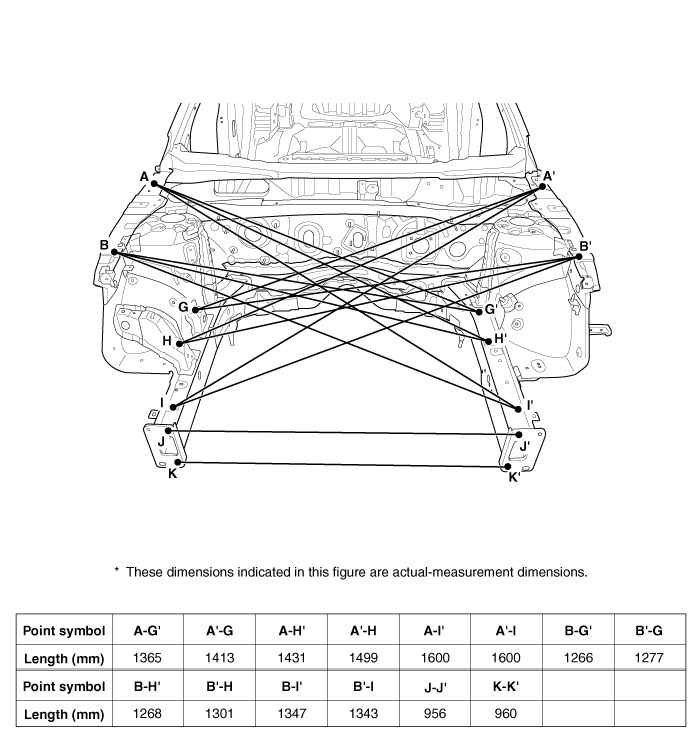

Hood hinge mounting hole (Ø10) | Fender apron upper inner panel tooling hole (Ø6.6) | Engine mounting bracket hole (Ø11) |
 |  |  |
Transaxle mounting hole (Ø11) | Engine mounting bracket hole (Ø11) | Transaxle mounting hole (Ø13) |
 |  |  |

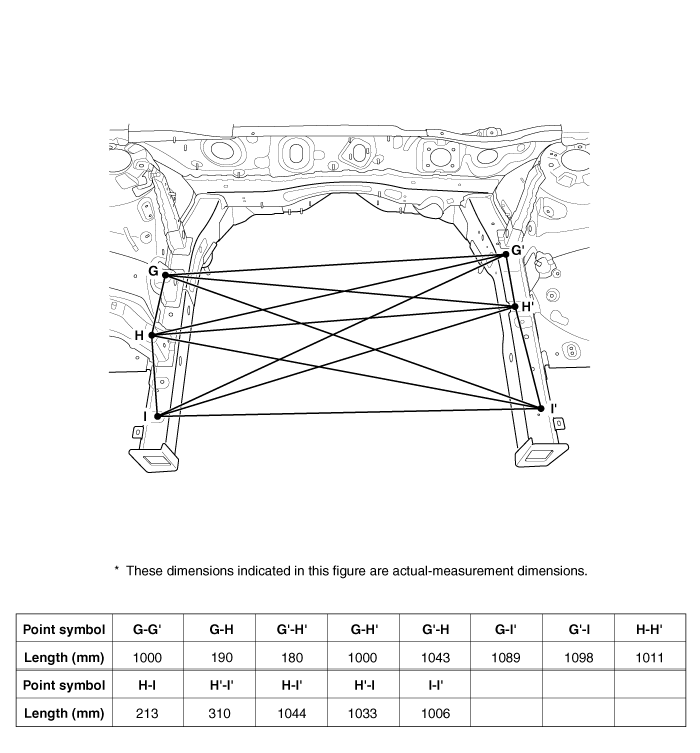

Front side member tooling hole (Ø9) | Front side member tooling hole (Ø9) | Front end module mounting hole (Ø10) |
| | |
Engine mounting bracket hole (Ø11) | Transaxle mounting hole (Ø11) | Engine mounting bracket hole (Ø11) |
| | |
Transaxle mounting hole (Ø13) | Front side member tooling hole (Ø9) | Front side member tooling hole (Ø9) |
