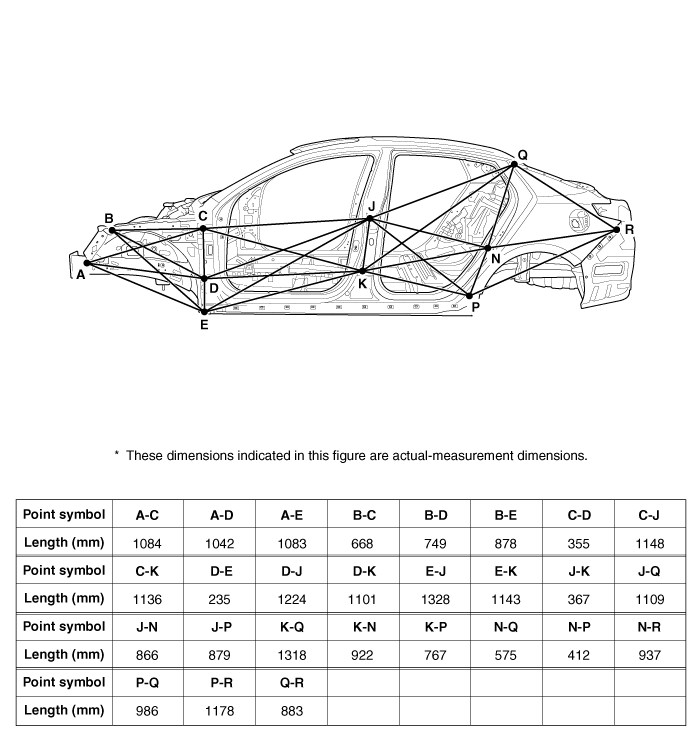

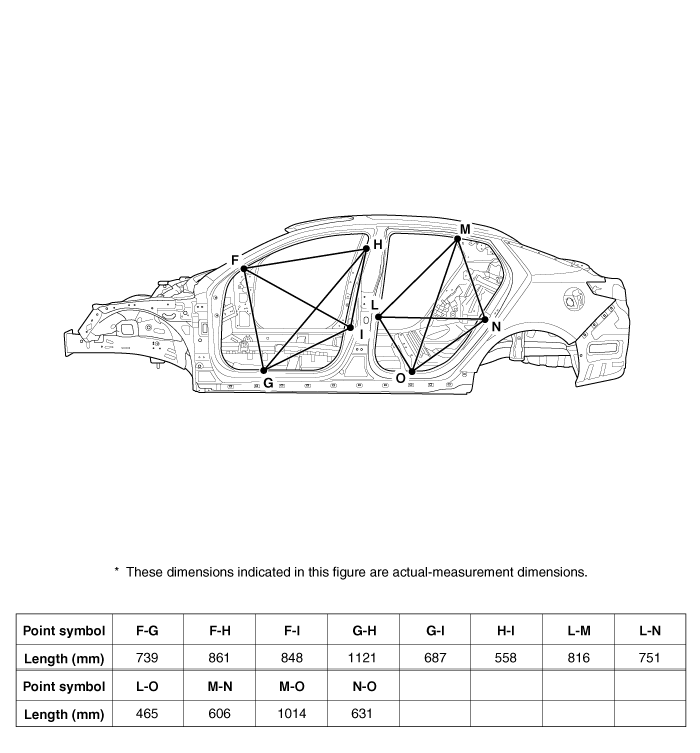

Front side member tooling hole (Ø20)
Fender apron tooling hole (Ø10)
Front door upper hinge mounting hole
(Ø13)
Front door lower hinge mounting hole
(Ø13)
Fender panel mounting hole (Ø6.6)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)
Rear door switch mounting hole (Ø10)
Side sill moulding mounting hole
(10X10)
C pillar moulding mounting hole (11X6)
Rear bumper mounting hole (Ø8)
