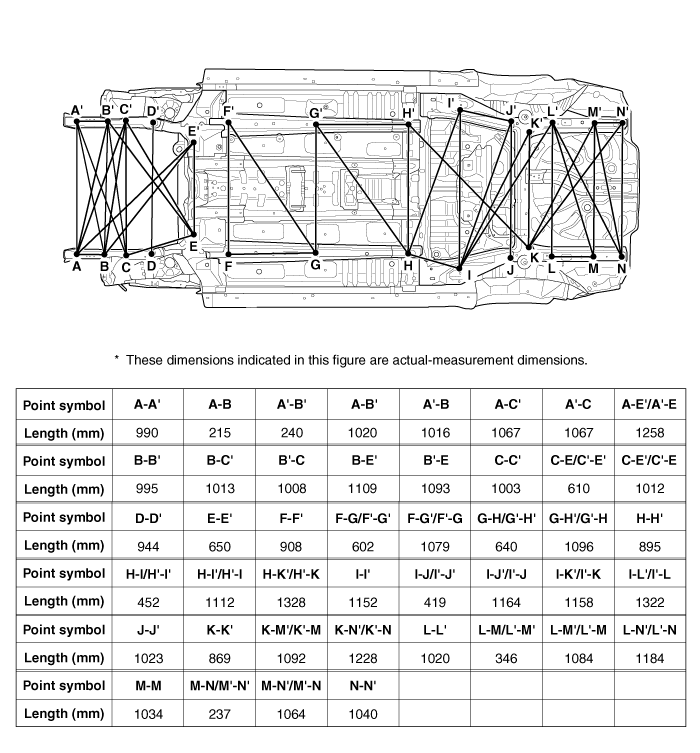

Front side member tooling hole (Ø25) | Side cover mounting hole (Ø6.6) | Side cover mounting hole (Ø6.6) |
 |  |  |
Front subframe mounting bolt | Front subframe mounting hole (Ø16.5) | Front side rear member tooling hole (Ø25) |
 |  |  |
Front side rear member tooling hole (Ø14.5) | Center floor side panel tooling hole (Ø19.5) | Rear trailing arm mounting hole (Ø19) |
 |  |  |
Rear subframe mounting hole (Ø16) | Rear subframe mounting hole (Ø16) | Fuel filler-neck assembly bracket mounting hole (Ø8) |
 |  | |
Rear floor side member tooling hole (Ø10) | Rear floor side member tooling hole (Ø20) |
| | |

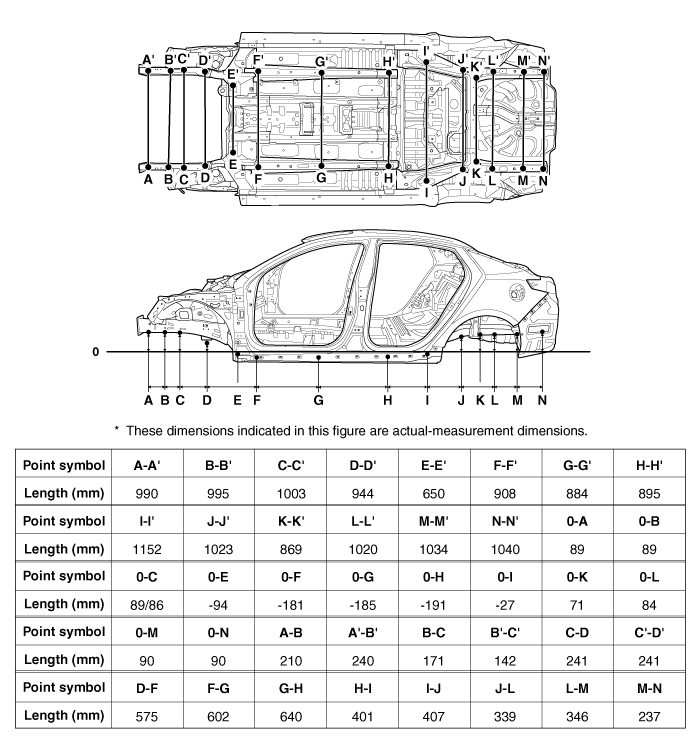

Front side member tooling hole (Ø25) | Side cover mounting hole (Ø6.6) | Side cover mounting hole (Ø6.6) |
| | |
Front subframe mounting bolt | Front subframe mounting hole (Ø16.5) | Front side rear member tooling hole (Ø25) |
| | |
Front side rear member tooling hole (Ø14.5) | Center floor side panel tooling hole (Ø19.5) | Rear trailing arm mounting hole (Ø19) |
| | |
Rear subframe mounting hole (Ø16) | Rear subframe mounting hole (Ø16) | Fuel filler-neck assembly bracket mounting hole (Ø8) |
| | |
Rear floor side member tooling hole (Ø10) | Rear floor side member tooling hole (Ø20) |
