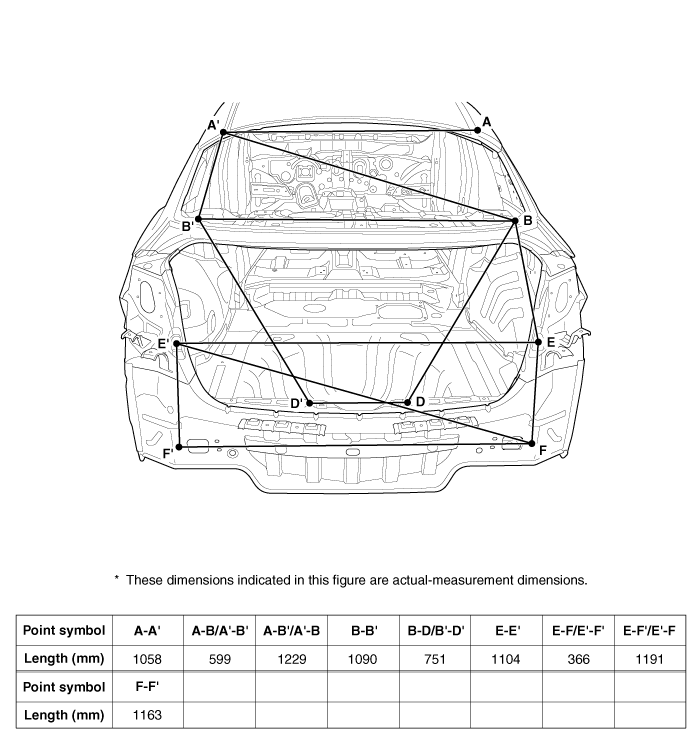

Side outer panel rear corner
Rear package tray trim mounting hole
(Ø10)
Rear transverse trim mounting hole
(Ø8.4)
Rear combination lamp mounting hole
(8.5X8.5)
Rear bumper mounting hole (11X13)
| | |
Side outer panel rear corner | Rear package tray trim mounting hole (Ø10) | Rear transverse trim mounting hole (Ø8.4) |
| | |
Rear combination lamp mounting hole (8.5X8.5) | Rear bumper mounting hole (11X13) |
