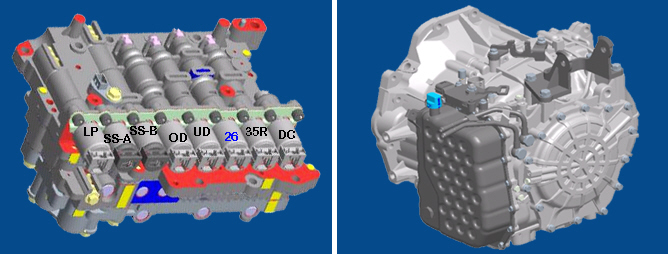

Component Location

General Description

TCM control 26/B-VFS solenoid valve by changed current for reducing 26 brake shock. And TCM charge pressure for reducing shift shock at 1st speed to 2nd speed by pre-Fill control.

DTC Description

This code is set when circuit open or short detected by TCM.

DTC Detecting Condition

Item	Detecting Condition	Possible Cause
DTC Strategy	• Monitoring voltage range(Circuit open/short check)	• Circuit open or short • 26/B-VFS solenoid • TCM
Enable Conditions	• Completely opened or closed • Gaer tightening • After change of speed > 0.3sec • 10V < Solenoid supplied power < 16V
Threshold value	• 50mA ≤ Feedback current(Circuit short) ≤ 550mA at operating • 50mA > Feedback current (Circuit open ) at operating
Detecting Time	• More than 0.2sec
Fail safe	• Locked into 4th gear

Specification

Operating step table at each status

	Solenoid
	SS-A	SS-B	OD N-H	35R N-H	UD N-H	26 N-L
N,P	○	○		○	○
1st	○		△	○
2nd			○	○		○
3rd		○	○
4th				○
5th		○			○
6th				○	○	○
L	○			○
REV	○	○	△		○

○ : Connected status

△ : Connedted at Vehicle speed above 8km/h

	Clutch		Brake
	35R	OD C	26 B	UD B	LR B	O.W.
P,N					●
R	●				●
D1				●	○	●
D2			●	●
D3	●			●
D4		●		●
D5	●	●
D6		●	●

○ : Operated at Vehicle speed under 5km/h

–

Working temperature : -40℃∼150℃

–

Internal resistance : 5.1 ± 0.3 Ω( 25℃ normal temperature )

Diagnostic Circuit Diagram

note

To view Flash content, you need to install the appropriate browser extension

note

To view Flash content, you need to install the appropriate browser extension

Signal Waveform & Data

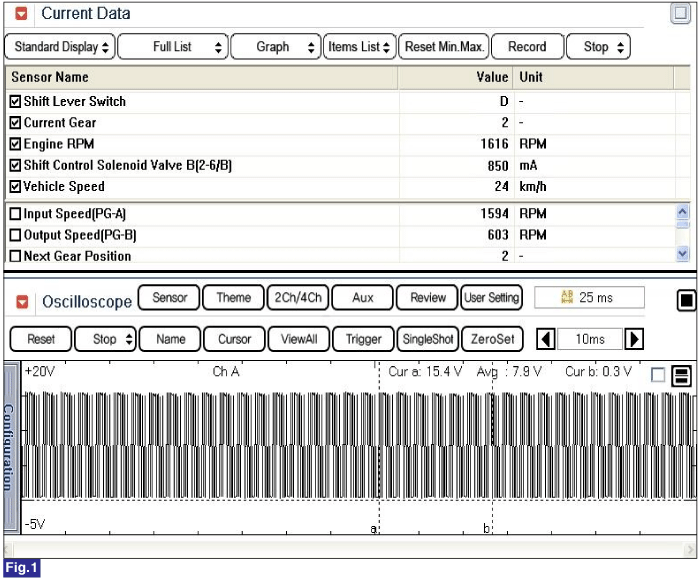

Fig 1) Wave form of 26/B-VFS
