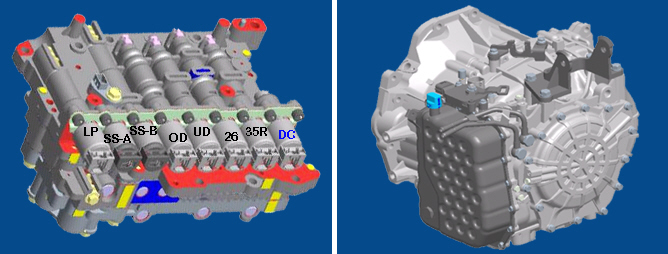

Component Location
General Description

TCM control Damper clutch perpomence by supplied oil pressue.

Damper clutch is for fuel reduction by decreasing oil pressue component's resistance in T/C.

DTC Description

This code is set when Damper clutch is opened & sticked.

DTC Detecting Condition

Item

Detecting Condition

Possible Cause

DTC Strategy

•

Rationality [Stuck OFF]

※ Torque converter clutch : TCC

•

TCC or Oil pressure system fault

•

TCC solenoid fault

•

Valve bady fault

•

TCM

Enable Conditions

•

Engine speed is above 400rpm

•

Completely gaer tightenin

Threshold value

•

Torque converter slip > 100rpm

Detecting Time

•

More than 5sec

Fail safe

•

Damper Clutch "OFF"

Specification
–

Supplied pressure 5.5 kgf/㎠ (Controlled pressure area 0~5.5)

–

Working temperature : -40℃∼150℃

–

Internal resistance : 5.1 ± 0.3 Ω( 25℃ normal temperature)

–

Hysteresis : 0.3 kgf/㎠

Diagnostic Circuit Diagram
note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension
Signal Waveform & Data

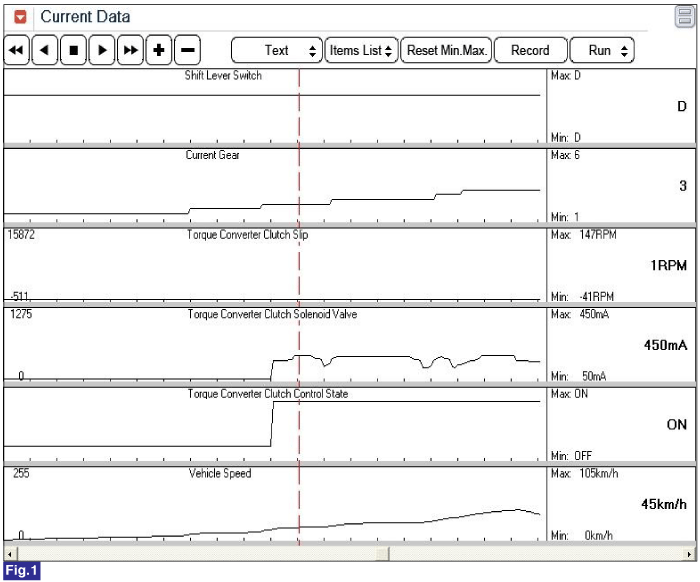

Fig 1) "D" range 3rd gear

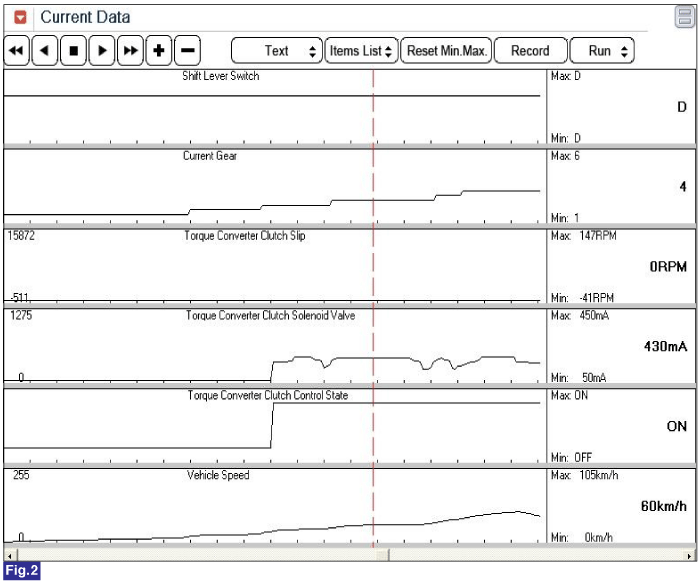

Fig 2) "D" range 4th gear

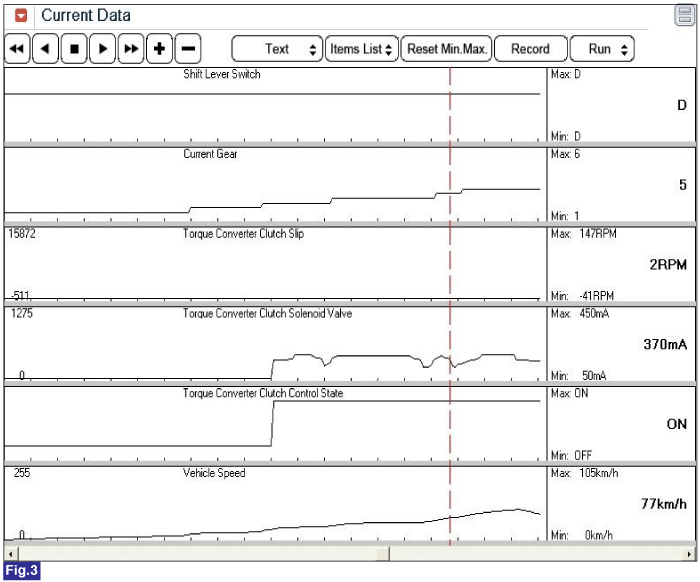

Fig 3) "D" range 5th gear

Fig 4) "D" range 6th gear

* Working above 3rd speed, but it may be working or not by driving variation at 3rd speed.
