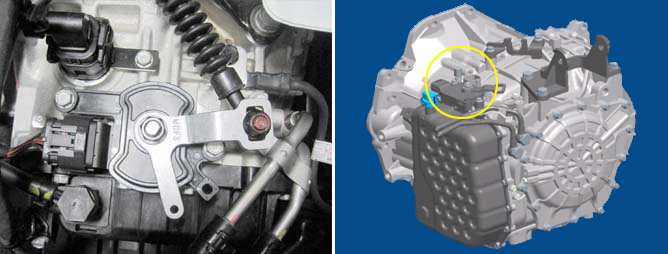

Shift lever positions P-range(Parking), R-range(Reverse), N-range(Neutral) and D-range(Driving) are changed by driver need and lever position is sent to PCM to control a gear ration.
This code is set when undefined range signal is input to PCM without specific of transmission pattern table. (See below)
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Circuit Range/performance |
•
Circuit short or open
•
Shift range signal error
•
PCM |
Enable Conditions |
•
Battery voltage > 10V
•
Engine speed > 1500RPM | |
Threshold value |
•
TR switch Invalid range signal | |
Detecting Time |
•
More than 10sec | |
Fail safe |
•
Normal status : All position possible
•
Abnormal status : Above 3rd position possible (3rd ~ 6th possible, 1st/2nd impossible) |

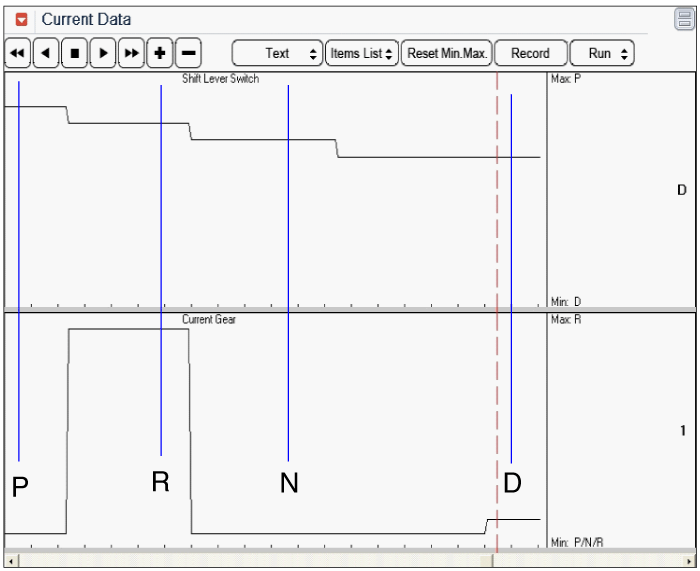

P | P-R | R | R-N | N | N-D | D | |
S1 | 1 | 1 | 0 | 0 | 0 | 0 | 0 |
S2 | 0 | 1 | 1 | 1 | 0 | 0 | 0 |
S3 | 0 | 0 | 0 | 1 | 1 | 1 | 0 |
S4 | 0 | 0 | 0 | 0 | 0 | 1 | 1 |
