Component Location

1. CVVL motor relay

General Description

CVVL (Continuously Variable Valve Lift) is a system that can change the valve lift continuously and it controls the amount of air flow by variable valve lifting. CVVL drives the valve lifts with optimization for engine RPM and improves fuel efficiency through reducing the pumping and friction loss. Also it can reduce the activation time of catalyst by improvement of response speed for acceleration.

PCM monitors the power line from battery to PCM for motor control.

DTC Description

ECU sets P1032 when there is a electrical problem for power supply due to short to battery.

DTC Detecting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

•

The power voltage from battery to PCM is higher than threshold.

1.

CVVL motor leave

2.

Short to battery of CVVL motor relay

EnableConditions

•

Battery voltage is higher than 10V and lower than 16V.

•

No P013C

•

CVVL Relay ON

Threshold value

•

Upper output threshold

Diagnosis Time

•

0.5 sec

MIL On Condition

•

Second driving cycle (MIL On)

Diagnostic Circuit Diagram
Signal Waveform & Data

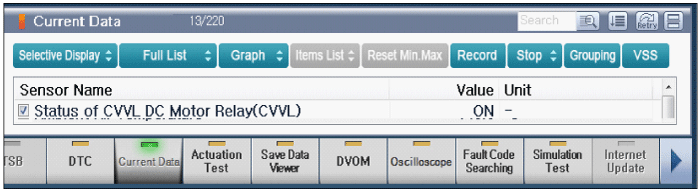

Check the status of CVVL Motor relay ON/OFF using GDS current data.
