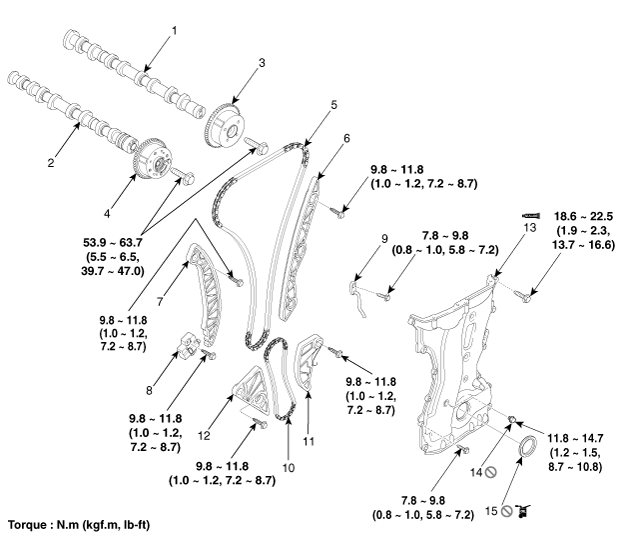

1. Intake camshaft 2. Exhaust camshaft 3. Intake CVVT assembly 4. Exhaust CVVT assembly 5. Timing chain | 6. Timing chain guide 7. Timing chain tensioner arm 8. Timing chain tensioner 9. Timing chain oil jet 10. Oil pump chain | 11. Oil pump chain mechanical tensioner arm 12. Oil pump chain guide 13. Timing chain cover 14. Service hole bolt 15. Crankshaft front oil seal |

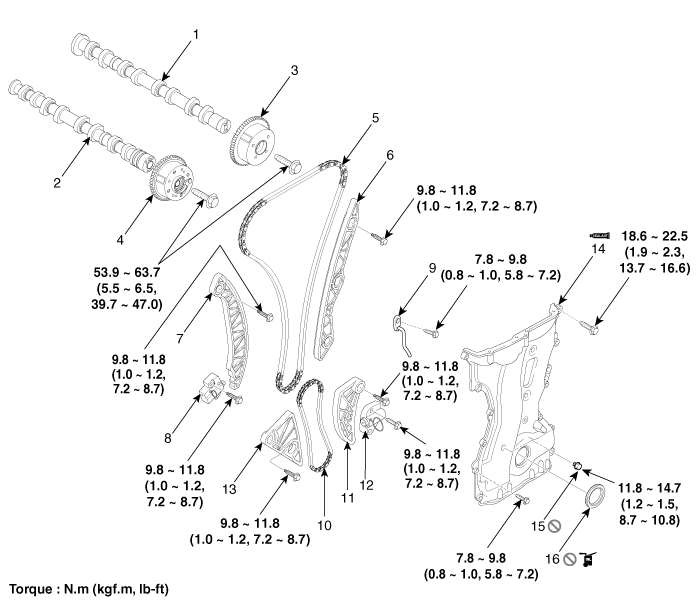

1. Intake camshaft 2. Exhaust camshaft 3. Intake CVVT assembly 4. Exhaust CVVT assembly 5. Timing chain | 6. Timing chain guide 7. Timing chain tensioner arm 8. Timing chain tensioner 9. Timing chain oil jet 10. Balance shaft chain | 11. Balance shaft chain tensioner arm 12. Balance shaft chain tensioner 13. Balance shaft chain guide 14. Timing chain cover 15. Service hole bolt 16. Crankshaft front oil seal |
