6.
Erase DTC.

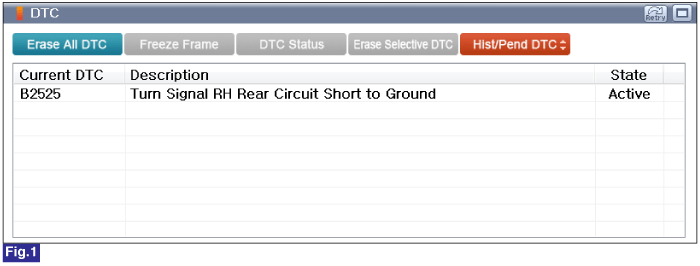

Fig.1) Diagnostic Trouble Code(DTC) is shown above
IG "OFF".
Connect GDS.
IG "ON" and engine "OFF".
Select "Diagnostic Trouble Codes(DTC)" mode.
Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.
Erase DTC.
Fig.1) Diagnostic Trouble Code(DTC) is shown above
After erase DTC Check for any DTCs again.
Is the same DTC occurred again?
 | ▶ Go to "Actuation Test" procedure. |
 | ▶ Fault is intermittent caused by poor contact in the SJB's connector or was repaired and SJB memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
IG "ON" & ENG "OFF".
Select "Actuation Test" mode.
Perfrom "Turn Right Signal" in the "Actuation Test" with GDS and check for proper operation.
Fig.1) Rear Right Turn Signal blinks when performing "Turn Right Signal" in the "Actuation Test"
Is Rear Right Turn Signal Lamp working normal?
| ▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Terminal and Connector Inspection" procedure. |
