VSM(vehicle safety management) receives a steering torque amount that is calculated by ESP(VDC) ECU and VSM output signal. Then, check for VSM output signal along with a steering torque piling method to pile up with the amount VSM suggests.

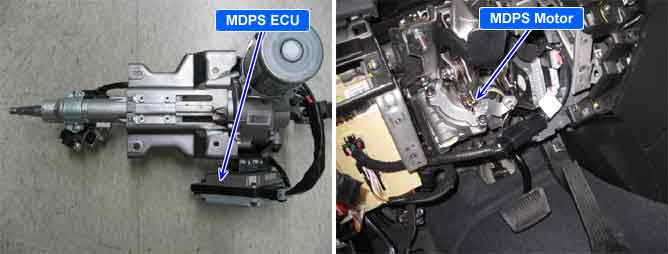

The EPS(MDPS=Motor Driving Power Steering) ECU sets DTC C1692 if it doesn't receive VSM(vehicle safety management) signals from ESP(VDC) ECM.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
VSM CAN message monitoring | 1. Faulty ESP(VDC). |
Enable conditions |
•
IG ON or Engine ON | |
Diagnostic Time |
•
100ms | |
Threshold value |
•
When it hasn't gotten any VSM signals from ESP(VDC) ECM |
