Check for the DTC
■ DTC Inspection
1.

Ignition "OFF".

2.

Connect GDS to Data Link Connector(DLC).

3.

Ignition "ON", engine "OFF".

4.

Select "Diagnostic Trouble Codes(DTC)" mode.

5.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

6.

Erase DTC.

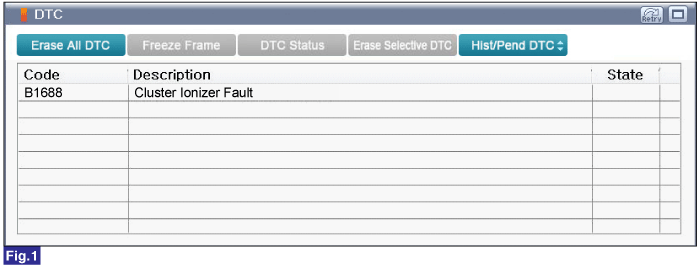

Fig.1) Diagnostic Trouble Code(DTC) is shown above

7.

After erase DTC Check for any DTCs again.

8.

Is the same DTC occurred again?

▶ Go to "Wiring Inspection" procedure.

▶ Fault is intermittent caused by poor contact in the sensor's and, or A/C control module's connector or was repaired and A/C control module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
