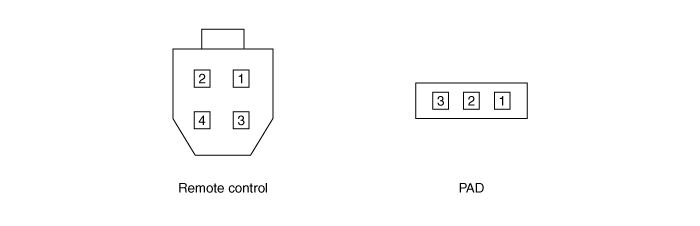

Connector Terminal Function
1.

Connector terminal

2.

Terminal Function

Housing

Pin

Function

Wire color

Pad

1

GND

Yellow

2

NTC+

Red/Black

3

HEATER

Back / Yellow

Remote

control

1

Ignition

Red

2

Ground(-)

Back

3

LED

Green

4

Switch

White

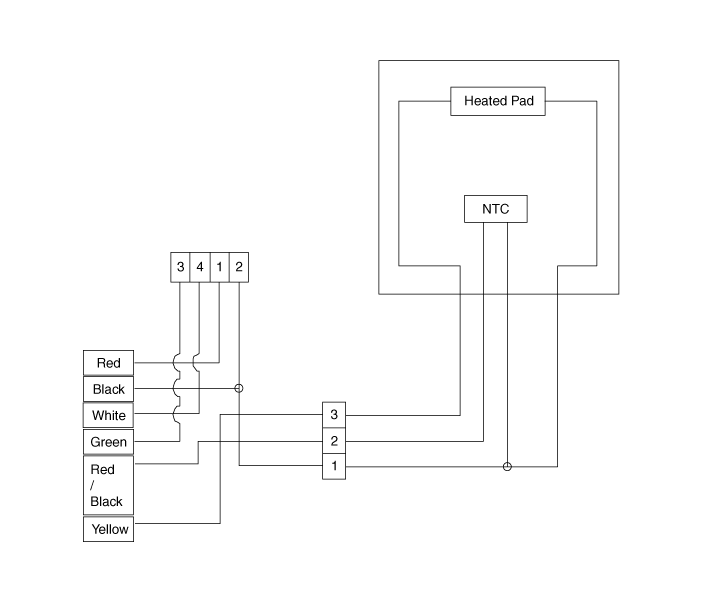

System Circuit Diagram
