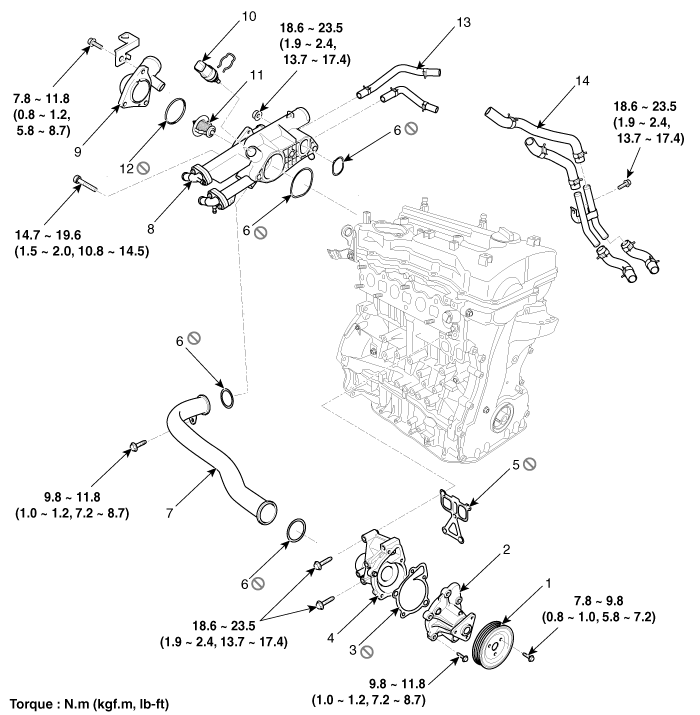

1. Water pump pulley

2. Water pump sub assembly

3. Water pump gasket

4. Water pump cover

5. Water pump cover gasket

6. O-ring

7. Water inlet pipe

8. Water temperature control assembly

9. Water inlet fitting

10. Engine coolant temperature sensor

11. Thermostat

12. Thermostat gasket

13. Throttle body coolant hoses

14. Oil cooler coolant hoses
