note
Items | Specification | ||
Ignition coil | Primary resistance | 0.62 ± 10 % (Ω) | |
Secondary resistance | 7.0 ± 15 % (kΩ) | ||
Spark plugs | MPI (Unleaded) | Type | LFR5A-11 |
Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | ||
MPI (Leaded) | Type | LFR5A | |
Gap | 0.8 ~ 0.9 mm (0.0315 ~ 0.0354 in.) | ||
GDI | Type | FXU16HR11 | |
Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | ||
Items | Specification | ||
Starter | Rated voltage | 12V, 1.2kW | |
No. of pinion teeth | 11 | ||
No-load characteristics | Voltage | 11.5V | |
Ampere | 90A, MAX | ||
Speed | 2,600rpm, MIN | ||
Items | Specifications | ||
Alternator | Type | Battery voltage sensing | |
Rate voltage | 13.5 V, 110A | ||
Speed in use | 1,000 ~ 18,000 rpm | ||
Voltage regulator | IC regulator built-in type | ||
Regulator setting voltage | External mode | ECU control | |
Internal mode | 14.55 ± 0.3V | ||
Temperature compensation | External mode | ECU control | |
Internal mode | -3.5 ± 2mV / °C | ||

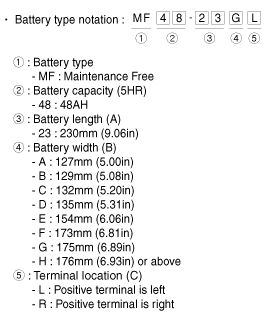

Battery | Type | 56-26FL | |
Cold cranking amperage [at -18°C(-0.4°F)] | 600A | ||
Reserve capacity | 113min | ||
Specific gravity [at 25°C(77°F)] | 1.280 ± 0.01 | ||
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
