Component location

1. Driveshaft (LH)

2. Driveshaft (RH)

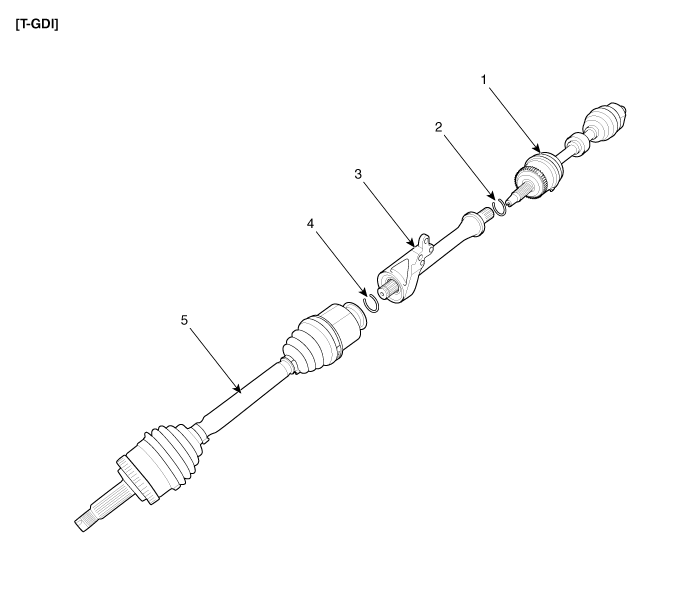

1. Driveshaft (LH)

2. Circlip

3. Inner shaft bearing bracket assembly

4. Circlip

5. Driveshaft (RH)

Components

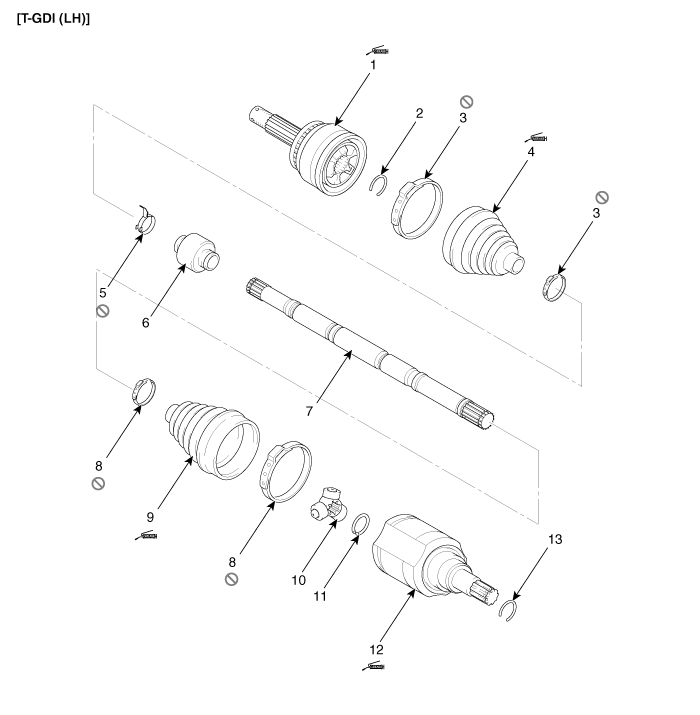

1. BJ assembly

2. Circlip

3. BJ boot band

4. BJ boot

5. Dynamic damper band

6. Dynamic damper

7. Shaft

8. TJ boot band

9. TJ boot

10. Spider assembly

11. Snap ring

12. TJ case

13. Circlip

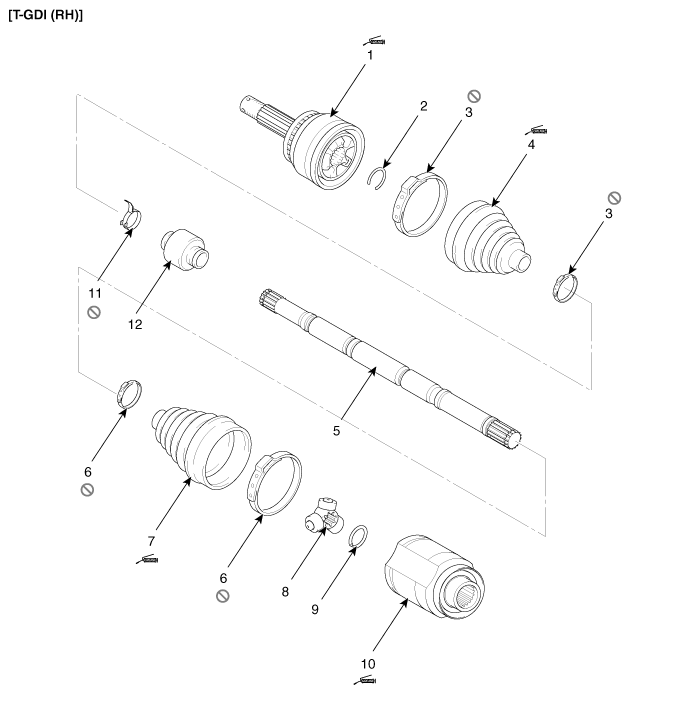

1. BJ assembly

2. Circlip

3. BJ boot band

4. BJ boot

5. Shaft

6. TJ boot band

7. TJ boot

8. Spider assembly

9. Snap ring

10. TJ case

11. Circlip

1. BJ Assembly

2. Clip

3. BJ Boot Band

4. BJ Boot

5. Dynamic Damper Band

6. Dynamic Damper

7. Shaft

8. UTJ Boot Band

9. UTJ Boot

10. Spider Assembly

11. Clip

12. UTJ Case

13.Clip

1. BJ Assembly

2. Clip

3. BJ Boot Band

4. BJ Boot

5. Shaft

6. UTJ Boot Band

7. UTJ Boot

8. Spider Assembly

9. Clip

10. UTJ Case

11. Dynamic Damper Band

12. Dynamic Damper
