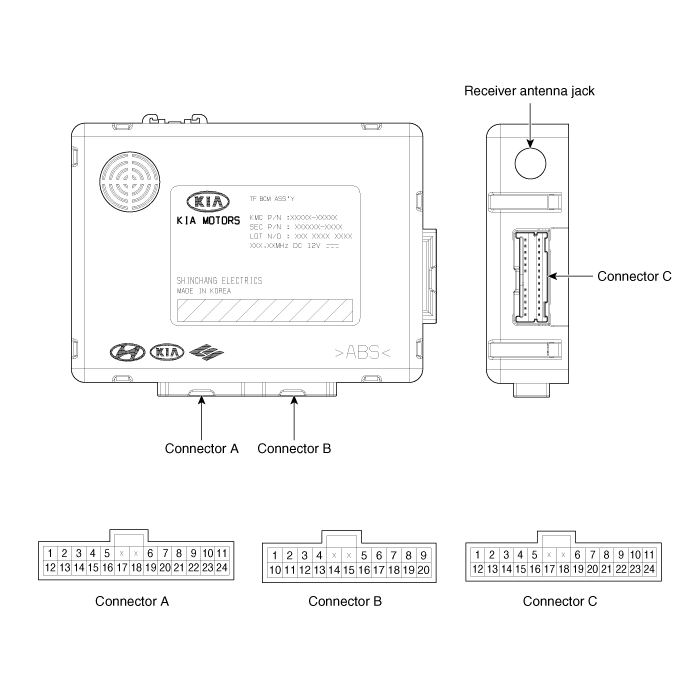

No. | Connector A (24pin) | Connector B (20pin) | Connector C (24pin) |
1 | Battery (+) | Head lamp low beam switch | Room lamp |
2 | IGN 1 | Head lamp high beam switch | AV tail signal |
3 | IGN 2 | Front fog switch | Buzzer (PAS) |
4 | ACC | Safety power window Enable | Mirror unfolding relay |
5 | Mist switch | K-Line | Rear left seat belt reminder indicator |
6 | Tail lamp switch | Auto light power | - |
7 | Key In switch | - | RPAS OFF indicator |
8 | Key interlock switch | LIN (PAS) | Front washer relay |
9 | Rear defogger switch | - | Head lamp low beam signal |
10 | Crash unlock input | Auto light switch | Front wiper relay |
11 | - | Front wiper intermittern volume switch | Mirror folding relay |
12 | PAS option | Door unlock output | Foot lamp |
13 | Sunroof open switch | - | ATM solenoid |
14 | Auto folding switch | CAN high | Key solenoid |
15 | Front washer switch | CAN low | Assistant seat belt indicator |
16 | Front intermittent wiper | Auto ligth ground | Ground |
17 | R positon input | Auto light signal | Rear right seat belt reminder indicator |
18 | Brake switch | - | Rear center seat belt reminder indicator |
19 | Rear right seat belt reminder switch | PAS OFF indicator | Pocket lamp |
20 | Rear center seat belt reminder switch | - | Security indicator |
21 | Rear left seat belt reminder switch |
| Key hole illumination |
22 | RPAS, PAS switch | - | |
23 | DRL option swithc | - | |
24 | Ground | - |
Pin name | Description | Interface |
V_B+ | ECU power supply | 12V (Battery voltage) |
L_IGN1 | High side switch | ON=12V |
L_IGN2 | High side switch | ON=12V |
A_ACC | High side switch | ON=12V |
L_MIST SW | High side switch | ON=12V |
L_TAIL LAMP SW | High side switch | ON=GND |
L_KEY IN SW | Low side switch | ON=GND |
L_KEY INTER LOCK SW | Low side switch | ON=GND |
L_REAR DEFOGGER SW | Low side switch | ON=GND |
L_REAR FOG LAMP SW | Low side switch | ON=GND |
L_PAS OPT | Low side switch | ON=GND |
L_SUNROOFOPEN SW | Low side switch | ON=GND |
L_AUTOFOLDING SW | Low side switch | GND = Folding, Open = Unfolding |
L_FRONT WASHER SW | High side switch | ON=12V |
L_FRONT INT WIPER SW | High side switch | ON=12V |
L_INH'R' | High side switch | ON=12V |
L_BRAKE SW | High side switch | ON=12V |
L_RR SBR SW | Low side switch | ON=GND |
L_RC SBR SW | Low side switch | ON=GND |
L_RL SBR SW | Low side switch | ON=GND |
L_RPAS OFF SW / L_PAS_SW | Low side switch | ON=GND |
L_Dedicated_DRL OPT | Low side switch | ON=GND |
L_HEAD LAMP LOW SW | Low side switch | ON=GND |
L_HEAD LAMP HI SW | Low side switch | ON=GND |
L_FRONT FOG LAMP SW | Low side switch | ON=GND |
L_AUTO LIGHT SW | Low side switch | ON=GND |
L_TMU Rx | Low side switch | ON=GND |
A_FRONT WIPER INT VOLUME SW | Analog input | H=5V, L=0V |
A_AUTO LIGHT SIGNAL | Analog input | H=5V, L=0V |
P_CRASH UNLOCK INPUT | PWM input | H=12 L=0V |
V_AutoLightPwr | Power output | 5V |
GND (AUTO LIGHT) | Ground output | 0V |
V_RPASPwr (reserved) | Power output | 8.5V |
GND (RPAS) | Ground output | 0V |
DIAGNOSIS (K-LINE) | Diagnostic Communication (K-line) |
|
CAN_H | CAN high signal |
|
CAN_L | CAN low signal |
|
GND1 (BCM) | Power ground 1 (BCM) |
|
GND2 (BCM) | Power ground 2 (BCM) |
|
Pin Name | Description | Load | Power |
O_SAFETY PWDW ENABLE | Safety power window enable output | Signal |
|
O_DRUnlockOut | Door unlock output (AV unlock) | Signal |
|
O_ROOM LAMP | Room lamp output | DC 12V 40W (Lamp) | B+ |
O_AV TAIL SIGNAL | AV tail lamp signal output | Signal |
|
O_BUZZER | PAS/RPAS buzzer output | DC 12V (Buzzer) | IGN1 |
O_HORN RELAY | Horn relay output | DC 12V 200mA | B+ |
O_POCKET LAMP | Pocket lamp output | DC 12V 1.2W (LED) | B+ |
O_RPAS OFF IND | RPAS OFF indicator output | DC 12V 1.2W (LED) | IGN1 |
O_HEAD LAMP WASHER RELAY | Head lamp washer relay output | DC 12V 200mA | IGN2 |
O_HEAD LAMP LOW SIGNAL | Head lamp low output stuts signal | Signal |
|
O_FRONT WIPER RELAY | Front wiper relay output | DC 12V 200mA | IGN2 |
O_Mirror Folding RELAY | Auto folding mirror relay output | DC 12V 200mA | B+ |
O_FOOT LAMP | Foot lamp output | DC 12V 10W (Lamp) | B+ |
O_ATM SOLENOID | ATM shift lock solenoid output | DC 12V 500mA (Solenoid) | B+ |
O_KEY SOLENOID | Key solenoid output | DC 12V 500mA (Solenoid) | B+ |
O_AST SEAT BELT IND | Assistant seat belt indicator output | DC 12V 1.2W (LED) | IGN1 |
O_RR SBR IND | Rear right seat belt reminder indicator output | DC 12V 1.2W (LED) | IGN1 |
O_RC SBR IND | Rear center seat belt reminder indicator output | DC 12V 1.2W (LED) | IGN1 |
O_RL SBR IND | Rear left seat belt reminder indicator output | DC 12V 1.2W (LED) | IGN1 |
O_SECURITY IND | Security LED indicator output | DC 12V 1.2W (LED) | B+ |
O_KEY HOLE ILLUMINATION LAMP | Key hole illumination lamp output | DC 12V 2W (Lamp) | B+ |
O_Mirror_Unfolding RELAY | Auto folding mirror relay output | DC 12V 200mA | B+ |
