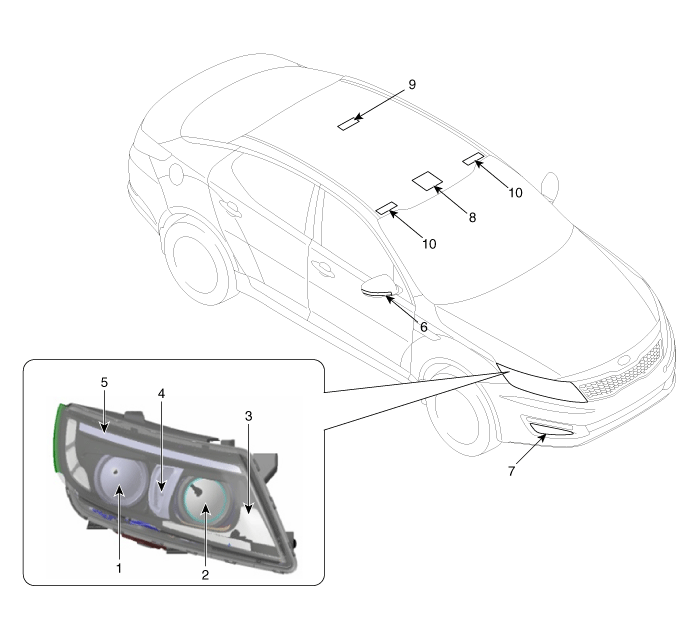

Component Location(1)

1. Head lamp (Low)

2. Head lamp (High)

3. Turn signal lamp

4. Smart cornering lamp

5. Position lamp (LED)

6. Side repeater lamp (Outside mirror)

7. Front fog lamp

8. Overhead console lamp

9. Room lamp

10. Vanity lamp

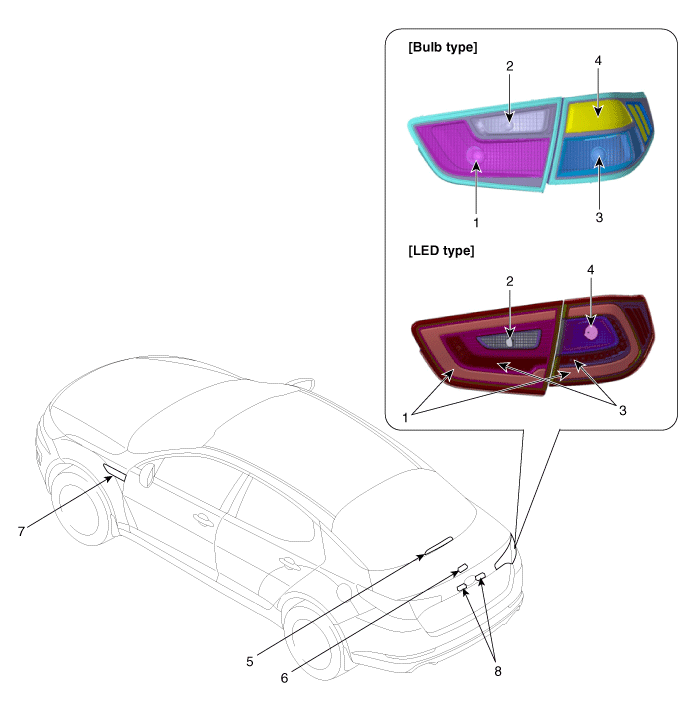

Component Location(2)

1. Tail lamp

2. Back up lamp

3. Stop/Tail lamp

4. Rear turn signal lamp

5. High mounted stop lamp

6. Luggage lamp

7. Side repeater lamp

8. License plate lamp
