4.
Testing Condition : Idle to Acceleration.
Specification : Refer to Figure below

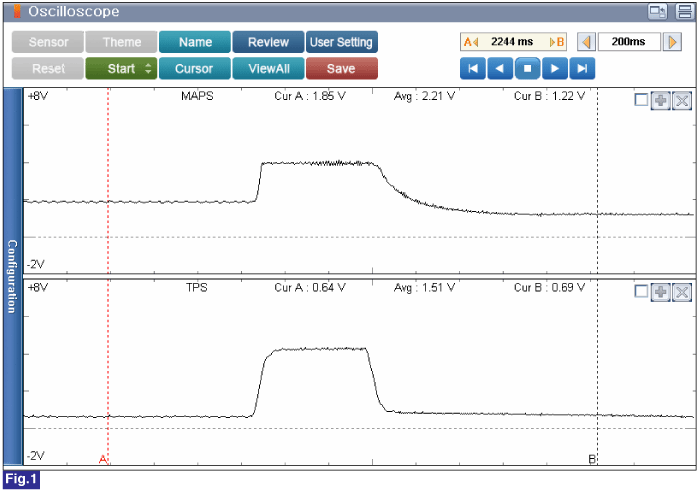

Fig.1) Normal MAP Sensor and TPS 1 Sensor signal waveform at idle to acceleration.
Ignition "OFF".
Connect VMI to GDS and set up an oscilloscope as follow (2-channel);
Channel A (+) : Pin No. 1 (Signal) terminal of MAP Sensor.
Channel A (-) : Ground
Channel B (+) : Pin No. 4 (TPS1 Signal) terminal of Throttle Body.
Channel B (-) : Ground
Ignition "ON" & Engine "ON".
Testing Condition : Idle to Acceleration.
Specification : Refer to Figure below
Fig.1) Normal MAP Sensor and TPS 1 Sensor signal waveform at idle to acceleration.
Is measured value within specification?
 | ▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors ( and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If no problems were found with the circuits or connectors, MAP Sensor and then go to "Verification of Vehicle Repair" procedure. |
Install the component with the specified torques.
Note that internal damage may occur when the component is dropped or mis- treated.
Insert the sensor in the installation hole and be careful not to damage.
