1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON".

3.

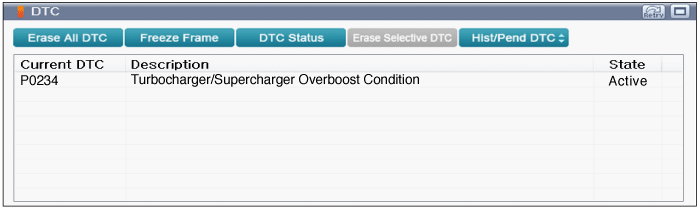

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

1.

Ignition "OFF".

2.

Connect GDS to Data Link Connector(DLC).

3.

Warm up the engine to normal operating temperature.

4.

Monitor following parameters in "Current Data" with GDS.

Specification : Refer to Figure below

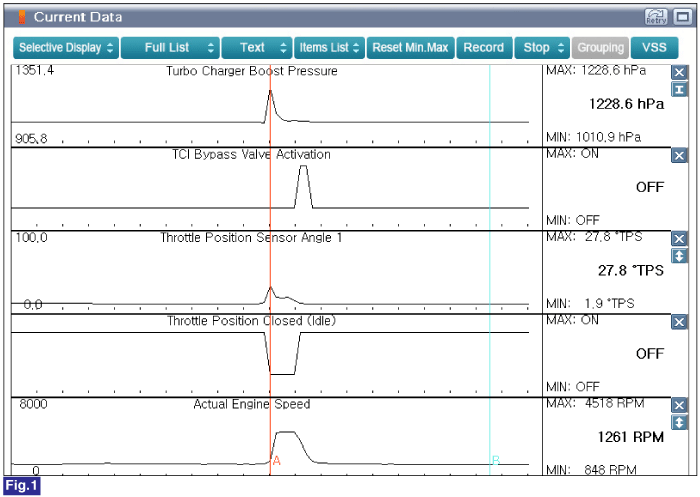

Fig. 1) Boost pressure sensor current data during acceleration.

5.

Is the parameter displayed within specification?

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors ( and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Go to "System Inspection" procedure.
