1.

IG "OFF".

2.

Connect GDS.

3.

IG "ON" and engine "OFF".

4.

Select "Diagnostic Trouble Codes(DTC)" mode.

5.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

6.

Erase DTC.

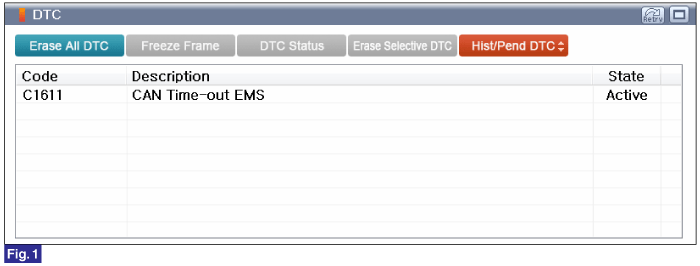

Fig.1) Diagnostic Trouble Code(DTC) is shown above

7.

After erase DTC Check for any DTCs again.

8.

Is the same DTC occurred again?

	▶ Go to Next procedure.
	▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

9.

Connect GDS to Data Link Connector(DLC).

10.

IG "ON"

11.

Monitor "Vehicle Speed" parameter in "Current Data" with GDS.

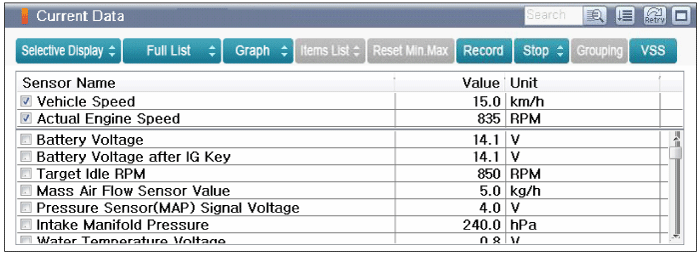

Specification : Refer to Current Data below

12.

Is parameter within specifications?

▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶Check for Wheel Speed Sensor and repair as neccesary or substitue with known good speed wheel sensor and check for proper operation. If problem is corrected, replace wheel speed sensor.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
