Check for the DTC

■ DTC Inspection

Ignition "OFF".

Connect GDS to Data Link Connector(DLC).

Ignition "ON", engine "OFF".

Select "Diagnostic Trouble Codes(DTC)" mode.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

Erase DTC.

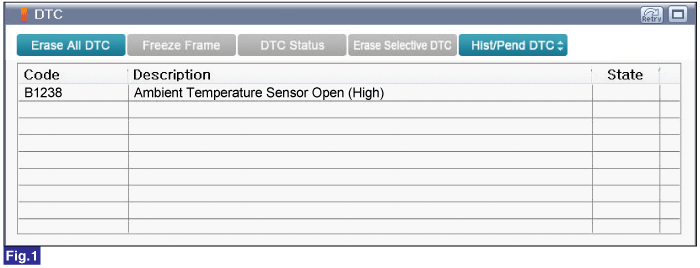

Fig.1) Diagnostic Trouble Code(DTC) is shown above

After erase DTC Check for any DTCs again.

Is the same DTC occurred again?

	▶ Perform following procedures.
	▶ Fault is intermittent caused by poor contact in the sensor's and, or A/C control module 's connector or was repaired and A/C control module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Monitor GDS Data

Connect GDS with diagnostic connector.

Warm up the engine to normal engine temperature after engine starts.

Select and monitor "Ambient temperature Sensor" parameter on the "Current Data" with GDS.

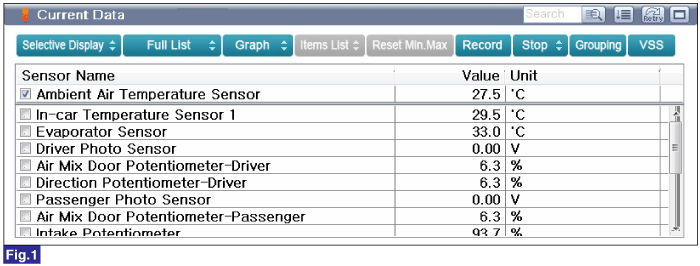

Fig.1) Parameter of "Ambient temperature Sensor" will be fixed at 20℃(68℉), if there is any fault in Ambient temperature Sensor.

Is parameter displayed within specification?

▶ Go to "Wiring Inspection" procedure.

▶ This is a intermittent problem caused by poor contact of component or control module.

▶ Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.

▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.
