Check for the DTC

■ DTC Inspection

Ignition "OFF".

Connect GDS to Data Link Connector(DLC).

Ignition "ON", engine "OFF".

Select "Diagnostic Trouble Codes(DTC)" mode.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

Erase DTC.

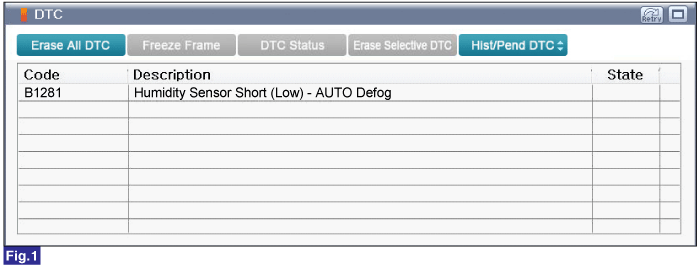

Fig.1) Diagnostic Trouble Code(DTC) is shown above

After erase DTC Check for any DTCs again.

Is the same DTC occurred again?

	▶ Perform following procedures.
	▶ Fault is intermittent caused by poor contact in the sensor's and, or A/C control module 's connector or was repaired and A/C control module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Monitor GDS Data

Connect GDS with diagnostic connector.

Warm up the engine to normal engine temperature after engine starts.

Select and monitor "Auto Defog humidity sensor" parameter on the "Current Data" with GDS.

Fig.1) If the DTC related Auto defogger humidity sensor is set, A/C control Module regards and controls humidity as 0%.

Is parameter displayed within specification?

▶ This is a intermittent problem caused by poor contact of component or A/C control module.

▶ Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.

▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure.

▶ Go to "Wiring Inspection" procedure.
