IG "OFF".

Connect GDS.

IG "ON" and engine "OFF".

Select "Diagnostic Trouble Codes(DTC)" mode.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

Erase DTC.

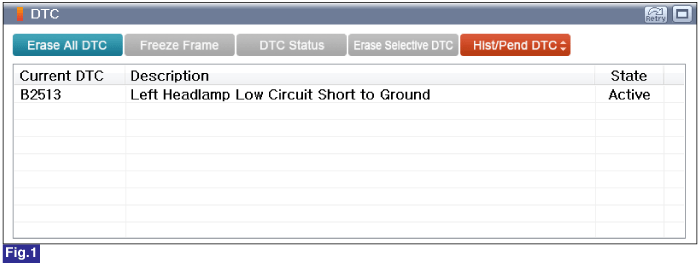

Fig.1) Diagnostic Trouble Code(DTC) is shown above

After erase DTC Check for any DTCs again.

Is the same DTC occurred again?

	▶ Go to "Current data" and "Actuation Test" procedure.
	▶ Fault is intermittent caused by poor contact in the SJB's connector or was repaired and SJB memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF".

Select "Current data" and "Actuation Test" mode.

Monitor "Head Lamp High Output" in the "Current Data" and Perfom "Head Lamp High Relay" in the "Actuation Test" with GDS.

Fig.1) "Haed Lamp Low Output" parameter shows "ON" when Head Lamp Low operates properly on Actuation test of "Head Lamp Low Relay".

Fig.2) When Head Lamp Low operates on performing Actuation Test of "Head Lamp Low Relay".

Is left head lamp low working normal?

	▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
