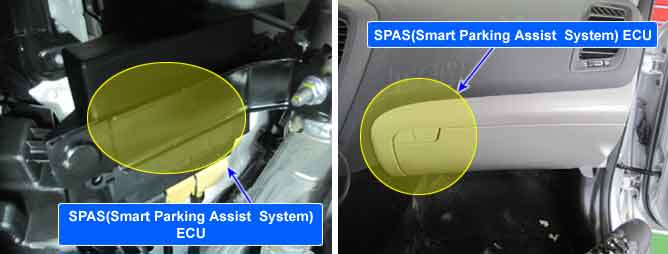

Component Location
General Description

It is the driving voltage of the SPAS ECU for smooth operation.

DTC Description

When the power circuit voltage from the SPAS ECU to the sensor is lower than expected normal value or the short to Ground occurs, the SPAS ECU is expressed as this DTC.

DTC Deteting Condition

Item

Detecting Condition

Possible cause

DTC Strategy

•

The power that supply to the SPAS/PAS sensors

(low voltage & short to ground)

1.

SPAS/PAS sensor power circuit open or short to ground

Enable Conditions

•

Ignitoion ON.

Threshold vlaue

•

Low voltage : the voltage that supply to sensor < 8.5V

•

short to ground

Diagnostic Time

•

DTC sets if the faulty is lasting over 1 second

DTC Erasing Time

•

-

Diagnostic Circuit Diagram
